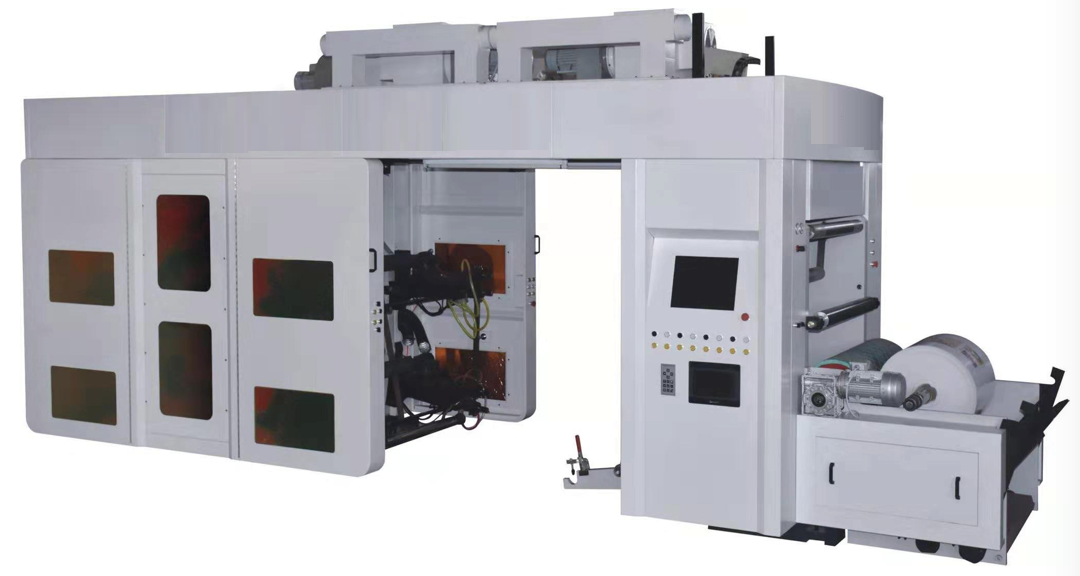

RYTY Flexography Printing Machine

(Keywords: Flexographic Printing machine, Film printing machine, flexo printing machine, Flexography Printing Machine)

Introduction:

This machine is suitable for printing such packaging materials as polyethylene, polypropylene plastic bag, glass paper and roll paper, etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag, vest bag and clothes bag, etc.

Performance and Characteristics

1. Easy operation, flexible starting, correct colored.

2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the set quantity or when the material is cut off.

3. Lift and lower the printing plate cylinder manually, it will automatically stir the printing ink after lifting.

4. The printing ink is spread by the knurled cylinder with ink color.

5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.

6. 360 degree continuous and adjustable longitudinal register device.

7. The imported frequency control of motor speed suitable for different printing speeds.

8. There are inching/stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.



Main Technical Parameters

Model

RYTY600

RYTY1000

Max width of material

600mm

1000mm

Max width of printing

560mm

960mm

Length range of printed product

191-914mm

191-914mm

Max diameter of material

450mm

450mm

Speed

5-50m/min

5-50m/min

Thickness of plates (with two-side glue paper)

2.38mm

2.38mm

Total power

10.87kw

12kw

Weight

3000kg

3800kg

Overall dimension

4200×16000×2400mm

4200×2000×2400mm
