MJBZJ-2 Automatic Flute Laminating Machine

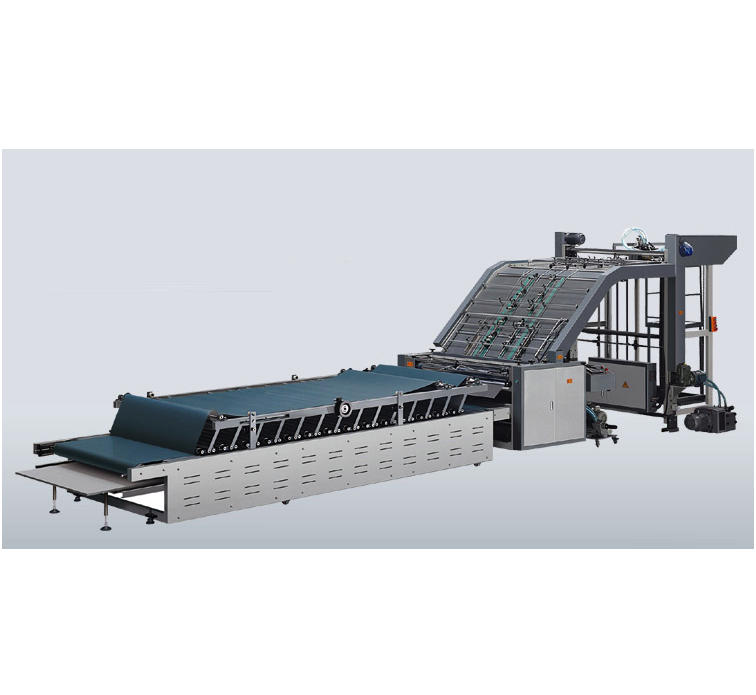

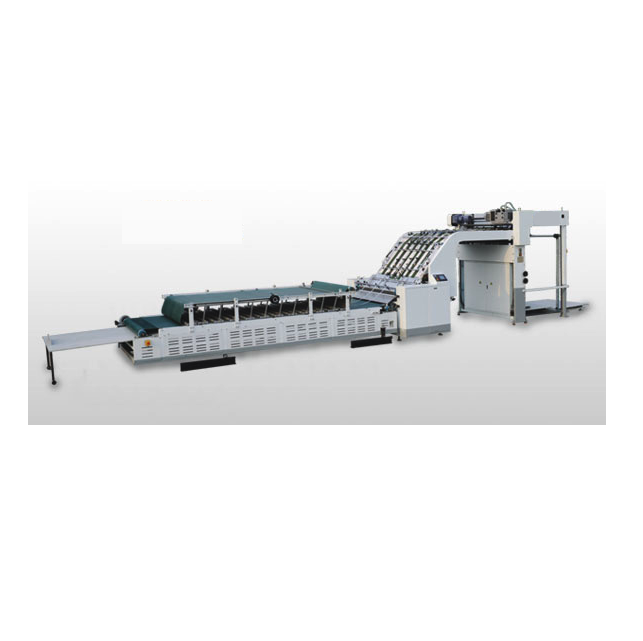

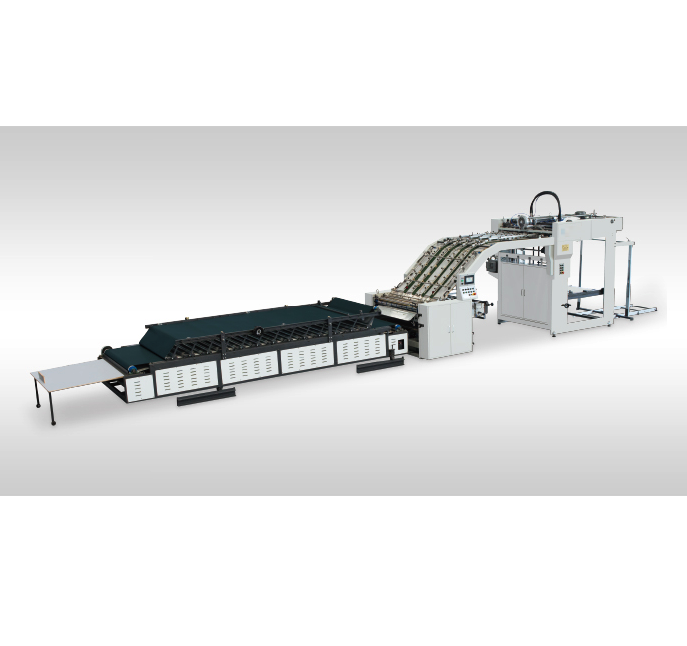

1. Machine Photo:

Note: The machines need a 40 feet container



Two-dimensional installation and operational size



Model

A

B

C

D

E

F

G

H

I

J

K

MJBZJ-2-1300

1360

1860

3500

1000

5200

1300

14220

2600

1500

1500

1500

MJBZJ-2-1450

1360

1860

3500

1000

5200

1450

14370

2600

1500

1500

1500

MJBZJ-2-1650

1650

2160

3500

1000

6300

2050

16660

2800

1500

1500

1500



2. Specifications

Model

MJBZJ-2-1300

MJBZJ-2-1450

MJBZJ-2-1650

Maximum Paper Size(W*L)

1300*1300mm

1450*1300mm

1650*1600mm

Minimum Paper Size(W*L)

350*350mm

350*350mm

400*400mm

Max. Machine Speed

153m/min

153m/min

153m/min

Total Power

16.25kw

16.25kw

18.1kw

Dimensions(L*W*H)

14000*2300*2700mm

14300*2450*2700mm

14800*2550*2700mm

Bottom sheet

A,B,C,E,F  Flute

A,B,C,E, F Flute

A,B,C,E,F Flute

Top sheet

150-450gsm

150-450gsm

150-450gsm

 3. Special Features of the Machine:



    A. MJBZJ-2 Series Automatic Flute Laminator adopts unique pressing spring front lay registration    design compliant with PLC control system which makes machine run at high lamination procession and low rate of breaking down.

    B. The machine uses frequency convertor for speed regulation, PLC central control, simulation to digit program system.

    C. The pre-piling device for the top sheet increases the production efficiency.



    D. The core designed rubber roller together with knurled stainless steel roller enhances the evenness of gluing, strength of stickiness, as well as lowering the production cost.

    E. Balance-tested rollers, tight assembling technique, plus timing belts driving mechanic system makes the machine runs at low noise with high precision.



    F. Touch screen with the operation panel ensures easy operation.



    G. The machine adopts automatic glue supplyrecyclable glue circulating system and auto-central oil supply system.



   H. Self-developed high-strength feeder compliant with high configuration electric system makes the machine run at low malfunction. The electric parts used are all world- wide available brand or well-known Chinese brand.



    I. All material bought from outside are inspected according to ISO-9001 standard and the key  parts such as bearings are imported ones.

      J. The bottom sheet for this machine can be A, B, C, E, F flute corrugated sheet. The top sheet can be 150-450 GSM. It can do 3 or 5 ply corrugated board to sheet lamination with the thickness not more than 8mm. It has top paper advance or alignment function.

    K. Gluing even: 25-35gsm. Quite cost effective for your production.

    L. The vacuum feeding and belts are controlled by servo motor for a fast and more accurate  sheet feeding.



4. Main electric components for MJBZJ-2 automatic flute laminator



No.

Name

Type

Specifications

Qty

Manufacturer

1

PLC

DVP-64EH00T

32in32out

1

Delta

2

Touch Screen

DOP-AS57CSTD

5.7’ 256 color

1

Delta

3

Servo controller

ASD-A0721-AB

1P 220V 0.75KW

1

Delta

4

Servo controller

ASD-A2023-AB

3P 220V 2.0KW

1

Delta

5

Filter

20TDT1W4D

EMI

2

Delta

6

Brake resistor

BR400W040

400W 40 Ohm

1

Delta

7

Wire for encoder

8 core shielded twisted pair

9m

2

Delta

8

Communication wire for touch screen



6m

1

Delta

9

Frequency Converter

VFD-M

2.2KW

1

Delta

10

Frequency Converter

VFD-M

1.5KW

1

Delta

11

Frequency Converter

VFD-M

0.75KW

1

Delta

12

Servo motor

C308007 S

750W

1

Delta

Servo motor

E31320 S

2.0KW

1

Delta

13

Dry type isolation transformer

380V/220V Three phase

P=3.0KW

1



14

Control transformer

BK-300 380/220

P=300W

1

Tengen

15

Air switch

TGM10-100/250

60A

1

Tengen

16

Stabilized voltage supply

S-50-24

50W

1

Meanwell

17

Proximity switch

TL-Q5MC1



1

Omron

18

Proximity switch

PM12-04N



4

Fotek

19

Sensor

E2R-10N



2

Fotek

20

Glue level controller

A61F-G

220V

1



21

Limit switch

AZD1002



2

Panasonic

22

Limit switch

TZ8112



1

Changde, Taiwan

23

Contactor

LC1-E0910



9

Schneider

24

Contactor

LC2-E1201

With interlocking block

1set

Schneider

25

Intermediate relay

Two group of NO

DC24V 2S

10

Schneider

26

Thermal relay



1.6-2.5A

2

Schneider



2.5-4A

1

Schneider



4-6A

1

Schneider



5.5-8A

1

Schneider

27

Breaker

C65NC10A 3P

10A

1

Schneider

C65NC16A 3P

16A

1

Schneider

C65NC32A 3P

32A

1

Schneider
