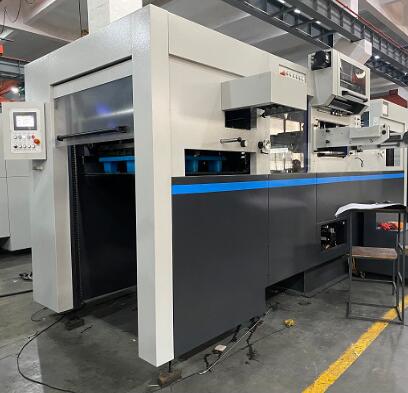

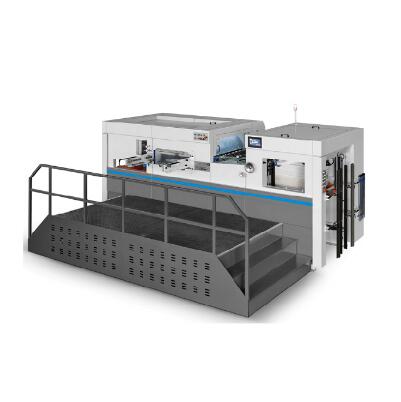

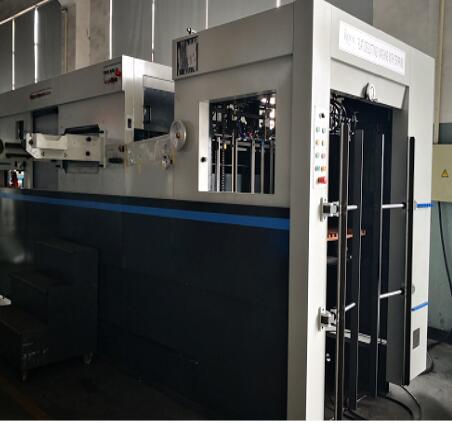

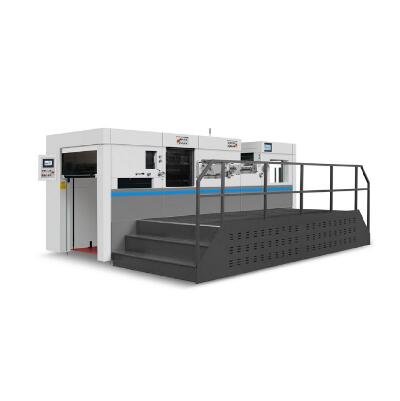

RYHK-1050T/TC Automatic Hot Foil Stamping and Die Cutting Machine with Stripping







 Brief Introduction

The RYHK series Automatic Hot Foil Stamping and Die cutting Machine with Stripping can efficiently complete the die cutting and embossing of products, as well as maintaining the highest precision and product quality. The RYHK series Automatic Hot Foil Stamping and Die cutting Machine with Stripping are well equipped and almost can adapt to all die cutting requirements of products.

1Adopt nodular cast iron-QT500-7, the mainframe wallboard casting by special technology process, thus featuring by high strength, never deformation and ensure the safety of the mainframe wallboard.

2Adopt Taiwan-imported intermittent mechanism to ensure that the machine operates accurately. Also, the main engine is equipped with overload protection device and torque limit clutch, to ensure that when they being impacted by external force can stops immediately to reduce the damage to the machine body and teeth precision and reduce the occurrence of failure rate.

3The whole machine all uses SKF\NSK imported original bearing.

4The whole machine uses original parts imported from France Schneider, Japanese OMRON.

5Key parts of gripper bars are imported from Japan.

6Die cutting precision±0.1mm,Max. working speed could reach 7500s/h.

7The craft shaft is adopts Germany Ni-Cr-Mo metal steel, with high precision and will never deforms.

8Use the centerline positioning system to realize fast plate changing of worksheet.

9Equipped with pressure automatic adjustment device, ensure fast and smooth when they adjusting of die cutting pressure.

10Equip with touch-screen operation interface in both Chinese and English.

11All adopt Taiwan AIRTAC pneumatic components to ensure every pneumatic action performs accurately.

12Equipped with double sheet detector

13Equipped with Non-stop automatic assisted paper collecting device

14The side gauge adopts photoelectric system.

15Automatic force lubrication system recycles fluid

16The oil pump adopts automatic cooling fan device.

17Main motor from Germany Siemens, ensure stable operation.

18Vacuum pump from Germany Becker, ensure paper feeding smoothly.



SPECIFICATIONS:

Model

RYHK820T/TC

RYHK-1050T/TC

Max. sheet size

820*600mm

1050*750mm

Min. sheet size

310*260mm

400*360mm

Max. die cutting size

800*580mm

1040*720mm

Max. hot stamping size

800*580mm

1040*720mm

Min. gripper margin

9-17mm

9-17mm

Inner chase size

910*610mm

1080*745mm

Stock range

80~600g/(Card paper)

0.1 ~ 2mm (paper)

4mm (Corrugated paper)

Die cutting accuracy

≤±0.1mm

≤±0.1mm

Max. working pressure

200ton

300ton

Max. working speed

6000s/h

7500s/h

Max. paper feeding stacking height

1500mm (including wooden pallet)

1600mm (including wooden pallet)

Max. paper collecting stacking height

1300mm (including wooden pallet)

1400mm (including wooden pallet)

Max. gold foil diameter

250mm(longitudinal) 200mm(lateral)

250mm(longitudinal) 200mm(lateral)

Electric-heated system

12 temperature zone, 40-180adjustable

Foil width

20-780mm

20-1020mm

Main motor power

7.5kw

11kw

Whole machine dimension

6700*3400*2200mm

7700*5200*2600mm

Total weight of machine

About 14.5t

About 18.5t

Full-load wattage

52kw

52kw



Configuration List RYHK-1050T/TC

SN.

Name

Brand

Place of Origin

SN.

Name

Brand

Place of Origin

1

Main motor

SIEMENS

Germany

13

Man-machine interface

SCHNEIDER

France

2

Die pressing base plate

5mm

HIGH ALLOY PLATE

Germany

14

Inverter

SCHNEIDER

France

3

Vacuum

BECKER

Germany

15

Indicator light

SCHNEIDER

France

4

Intermittent segmentation

TAN TZU

Taiwan

16

Circuit breaker

SCHNEIDER

France

5

Rotary joint

OMPI

Italy

17

Safety relay

SCHNEIDER

France

6

Electromagnetic clutch

OMPI

Italy

18

Security module

SCHNEIDER

France

7

Electromagnetic gear clutch

OMPI

Italy

19

Button

SCHNEIDER

France

8

Feeder

YONGCHUAN

Taiwan

20

Motor protector

SCHNEIDER

France

9

Crankshaft material

Ni-Cr-Mo METAL STEEL

Germany

21

Magnetic switch

SCHNEIDER

France

10

Main drive chain

RENOLD

England

22

AC contactor

SCHNEIDER

France

11

Secondary chain

TSUBAKIMOTO

Japan

23

Button

SCHNEIDER

France

12

Tooth row, tooth slice

KUI

Japan

24

Relay

SCHNEIDER

France

25

Chip

SCHNEIDER

France

35

Paper conveying belt

XINBEX

China

26

Control center

SCHNEIDER

France

36

Cable

TKD

Germany

27

Three-longitudinal and two-lateral servo

SCHNEIDER

France

37

Air cylinder

AIRTAC

Taiwan

28

Hot stamping control system

SCHNEIDER

France

38

Air volume regulator

AIRTAC

Taiwan

29

Program controller

SCHNEIDER

France

39

Main solenoid valve

AIRTAC

Taiwan

30

Photoelectric switch

OMRON

Japan

40

Linear guide

ABBA

Taiwan

31

Relay seat

OMRON

Japan

41

Worm and gear

WANCENG

Taiwan

32

Proximity switch

OMRON

Japan

42

Wallboard and machine body structure

QT500-7 nodular cast iron

China

33

Encoder

OMRON

Japan

43

Main paper feeding motor

DONGLI

Taiwan

34

Sensor

OMRON

Japan

44

Lift motor of paper collecting platform

DONGLI

Taiwan



Installation dimension of RYHK-1050T (7262mm* 5165mm* 2523mm)

Installation dimension of RYHK-1050TC (7262mm* 5165mm* 2523mm)

SPECIFICATIONS (RYHK-1050/1050CE):

Model

RYHK-820/820CE

RYHK-1050/1050CE

Max. sheet size

820*600mm

1050*750mm

Min. sheet size

310*260mm

400*360mm

Max. die cutting size

800*580mm

1040*720mm

Max. hot stamping size

800*580mm

1040*720mm

Min. gripper margin

9-17mm

9-17mm

Inner chase size

910*610mm

1080*745mm

Stock range

80~600g/(Card paper)

4mm(Thickness of corrugated paper)

Die cutting accuracy

≤±0.1mm

≤±0.1mm

Max. working pressure

200ton

300ton

Max. working speed

7500s/h

7500s/h

Max. paper feeding stacking height

1500mm (including wooden pallet)

1600mm (including wooden pallet)

Max. paper collecting stacking height

1300mm (including wooden pallet)

1400mm (including wooden pallet)

Main motor power

11kw

11kw

Whole machine dimension

6700mm×3400mm×2200mm

6227mm×4593mm×2349mm



8700mm×3400mm×2200mm (CE)

7252mm×4595mm×2349mm (CE)

Total weight of machine

About 12t / 13t (CE)

About 16t / 17t (CE)

Full-load wattage

16kw /16.9kw (CE)

16kw /16.9kw (CE)



Configuration List RYHK-1050/1050CE

SN.

Name

Brand

Place of Origin

SN.

Name

Brand

Place of Origin

1

Main motor

SIEMENS

Germany

13

Man-machine interface

SCHNEIDER

France

2

Die pressing base plate

5mm

HIGH ALLOY PLATE

Germany

14

Inverter

SCHNEIDER

France

3

Vacuum

BECKER

Germany

15

Indicator light

SCHNEIDER

France

4

Intermittent segmentation

TAN TZU

Taiwan

16

Circuit breaker

SCHNEIDER

France

5

Rotary joint

OMPI

Italy

17

Safety relay

SCHNEIDER

France

6

Electromagnetic clutch

OMPI

Italy

18

Security module

SCHNEIDER

France

7

Electromagnetic gear clutch

OMPI

Italy

19

Button

SCHNEIDER

France

8

Feeder

YONGCHUAN

Taiwan

20

Motor protector

SCHNEIDER

France

9

Crankshaft material

Ni-Cr-Mo METAL STEEL

Germany

21

Magnetic switch

SCHNEIDER

France

10

Main drive chain

RENOLD

England

22

AC contactor

SCHNEIDER

France

11

Secondary chain

TSUBAKIMOTO

Japan

23

Button

SCHNEIDER

France

12

Tooth row, tooth slice

KUI

Japan

24

Relay

SCHNEIDER

France

25

Chip

SCHNEIDER

France

34

Cable

TKD

Germany

26

Control center

SCHNEIDER

France

35

Air cylinder

AIRTAC

Taiwan

27

Program controller

SCHNEIDER

France

36

Air volume regulator

AIRTAC

Taiwan

28

Photoelectric switch

OMRON

Japan

37

Main solenoid valve

AIRTAC

Taiwan

29

Relay seat

OMRON

Japan

38

Linear guide

ABBA

Taiwan

30

Proximity switch

OMRON

Japan

39

Worm and gear

WANCENG

Taiwan

31

Encoder

OMRON

Japan

40

Wallboard and machine body structure

QT500-7 nodular cast iron

China

32

Sensor

OMRON

Japan

41

Main paper feeding motor

DONGLI

Taiwan

33

Paper conveying belt

XINBEX

China

42

Lift motor of paper collecting platform

DONGLI

Taiwan



Installation dimension of RYHK-1050 (6227mm* 4593mm* 2349mm)

Installation dimension of RYHK-1050CE (6227mm* 4593mm* 2349mm)
