Royal Packing RYJ-UV1100 Automatic UV Spot coating Machine

Introduction:

This machine is used for both full and spot varnishing on light and thick paper with accurate and even spot coating by blanket or flexo plate. Many safeguards and human-based operating procedures ensure user safety and convenience. Imported elements for main bearings and electrical components are adopted in the machine.

Main Technical Parameters:

Model: RYJ-UV1100

Max sheet size	800×1100mm
Min sheet size	307×400mm
Max coating size	760×1060mm
Paper weight	80-450g/m²
Max speed（UV coating）	5000sheets/hour
Total electric consumption	45kw
UV lamp （NO.×power）	3×9.75kw
IR lamp（optional，NO.×power）	15×1.5kw
weight	8.4T
Overall Dimensions	7600×2600×1950mm
Note: the speed is based on the paper size and paper weight

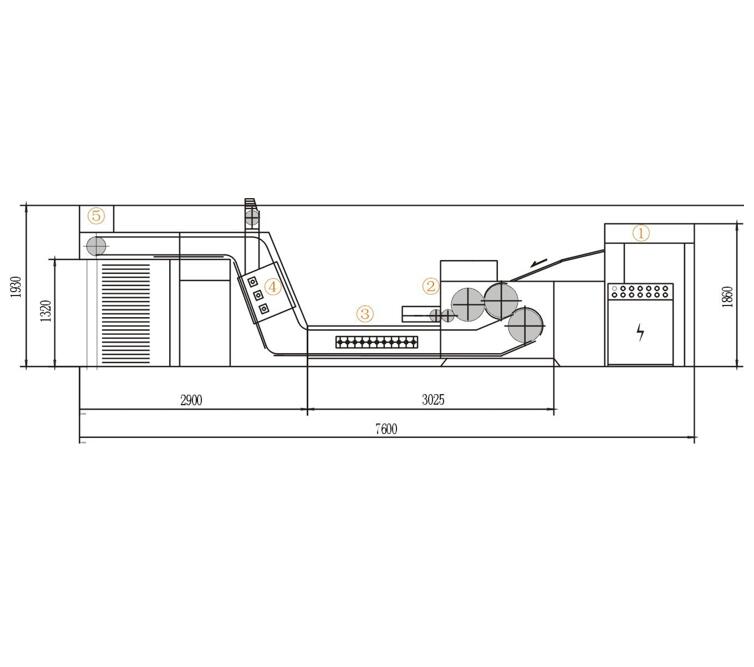

Basic Components:

〔1〕 Feeding Section

〔2〕 Varnishing Section

〔3〕 IR Drying Section

〔4〕 UV Curing Section

〔5〕 Delivery Section

Standard Configuration Picture:

Model Parameter	RYJ-UV1100
Gripper depth（mm）	5-8MM
Blanket size (mm)	1000×1100MM
Blanket thickness (mm)	1.9MM
Max. Height of feeding table(mm)	1300MM
Max. Height of delivery table(mm)	1050MM
Total consumption（KW）	73KW
Standard Overall dimensions LWH (standard configuration)	7602×2850×2150MM
Non-stop feeding&delivery with pre-pile Overall dimensions LWH (standard configuration)	9801×2850×2150MM
Overall dimensions LWH with 2 IR	11121×2850×2150MM
Standard weight	8.4T
Non-stop feeding&delivery weight	8.5T
2 IR sections weight	9.6T

The production place of main parts:

〔1〕the main electrical components are from Schneider; the PLC from is optional.

〔2〕the bearings：the NSK from Japan

〔3〕main motor：the motor is from China , or from SIEMENS or ABB.

〔4〕the belt：from Switzerland HABASIT.

〔5〕air compressor：made in China.

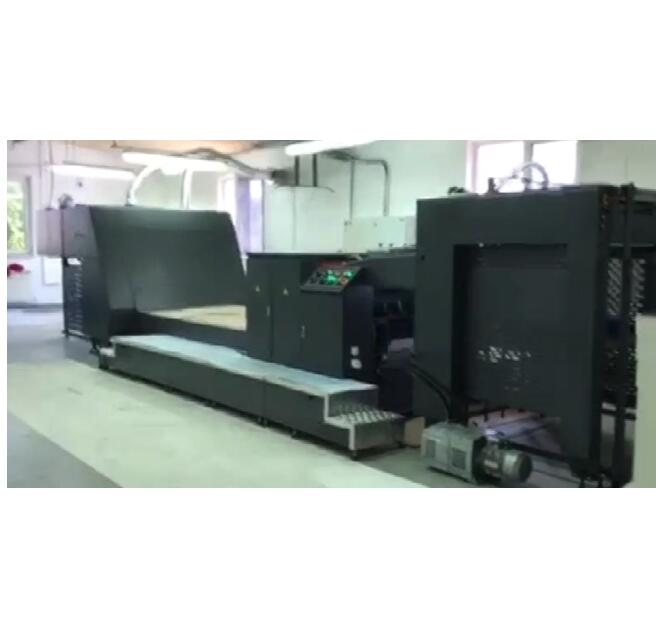

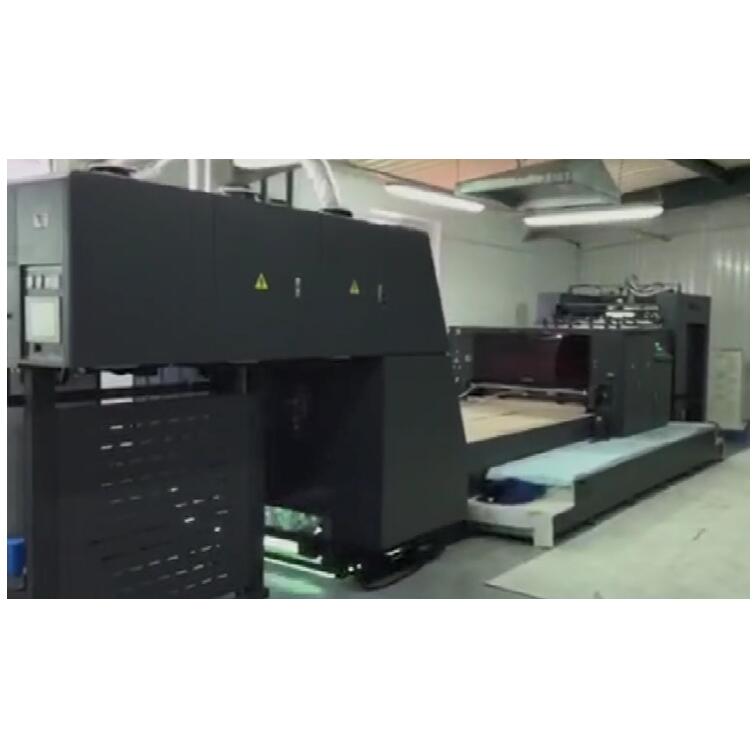

Details:
