ROYAL PACKING MJSGL-1 Single Facer Line (2-layer corrugated paperboard production line):

Introduction:

Single facer line is also called 2-layer corrugated paperboard production line. The Single facer Line is composed of Paper Roll stand, Single facer machine, circumvolve paper cutting machine. To use the web paper material single face machine production line, producing and cutting single face corrugated paper as required sizes, it forms the corrugated board with no need drying. This unit has the advantages of reasonable fabric, advanced technology, high quality of production, high efficiency, low workmanship, operation and maintenance easy. This is the preferred equipment for the production of corrugated cardboard of the cardboard factories.



Technological Parameter:

Working Width

1200mm

1400mm

1600mm

1800mm

Heating method

Steam heating

Design speed

100m/min

Economical speed

60-80m/min

Compress-air pressure

0.4-0.9MPa

Flute type

Standard flute

UV Flute

Standard spec.

A,B,C,E,F

For other type and model, we can produce as customer’s requirement.



Detail Introduction:

1.MJSF-280V Single Facer 1400mm



Specfication:

Max. machine speed

100m/min

Economic speed

80m/min

Max. working width

1200mm

Max working steam pressure:

1.0-1.3Mpa

Steam temperature

160—210 centigrade

Power requirements:

380v, 50Hz

Diameter of corrugated roller

280mm

Diameter of Press roller.

284mm.

Diameter of preheater roller

320mm

Diameter of Glue roller

216mm



Machine Introduction:

-- Design Speed: 100m/min.

-- Corrugated roller:φ280mm.

-- Fingerless vacuum suction type single facer, the upper and lower corrugated roller made of 48 CrMo alloy steel, with hard treatment, the hardness is above HRC58-60 degree. The surface is well treated by grind and plated chrome.

-- Glue section is unit assemblage, whole section can be moved by track, save maintenance time.

-- Adopt Glue width motorized dividing to match the paper width. Idle running motor for glue applicator roll avoids glue dry. Adjustment for gap between glue roller and doctor roller by electric or manual are optional, Digital read out for the gap between glue roll and doctor roll is optional.

-- Adjustment for corrugated roller, pressure roller, and glue roller by pneumatic system.

-- With preheater for liner paper and steam spray device for medium paper.



Mainly purchased parts, raw materials and origin:

Name of main parts

Brands or Origin

Material

Wallboard and base

Production by own

HT250

Transmission box

Hebei

QT450

Rotation joint and Metal Hose

Quanzhou yujie



Main drive motor

Hebei hengshui

18.5KW frenquency motor

bearing

HRB,ZWZ,LYC or zhejiang direction

Bearing of corrugated roller and pressure roller adopt Timken production.

Seat belt bearing

Zhejiang wuhuan



High pressure air

Shanghai yingfa



cylinder

Zhejiang sonorCSM



Solenoid valve

Zhejiang sonor CSM



traps

Beijing

Inverted bucket type

contactor

schneider



Frenquency controller

Taiwan delta



Human machine interface

Taiwan WEINVIEW or MCGS

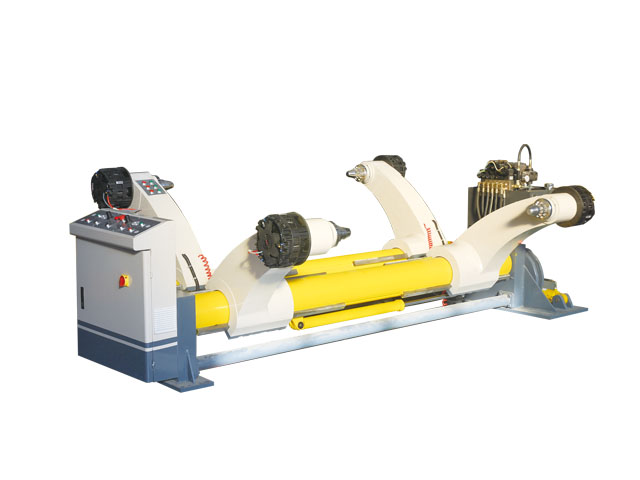

ROYAL PACKING 2- MJRS-1 Hydraulic Mill Roll Stand 1200model:





Specification:

Max. working width

1250mm

Min. working width

600mm

Max. paper mill dia

1500mm

Max working pneumatic pressure:

0.6-0.9Mpa

Power requirements:

380v, 50Hz

Length of track for carry paper mill

6000mm

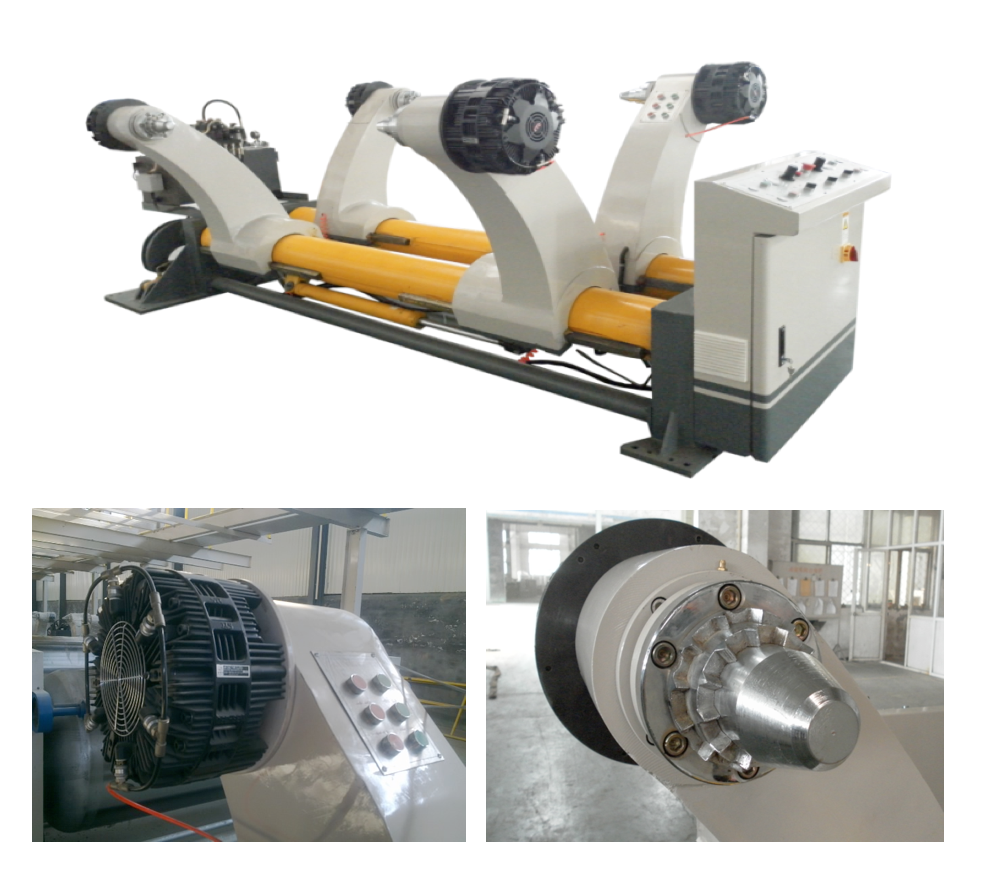

Machine Introduction:

*Swing type.

*Max. paper roll dia:            1500mm

              length:                    800-1400mm

*Clamping paper roll, moving right-left, arms up-down and paper roll rotation is hydraulic operated.

*Support two paper rollers in the meantime, one is working, and another is for spare part.

* Adopts “Spring clutch”.

* Paper tension controlled by pneumatically operated disc brake, setting the tension easily.



Technical parameters:

1. Applies to tile line width: 1400mm

2. Dimensions: .6000mm × 550mm × 400mm (L × W × H)

3. Power supply: Voltage 380V  Frequency 50Hz



Structure features:

1. Electric will base paper delivery in place, lightweight flexible.

2. Track overall buried, the main frame for 16 channel steel welded, strong and durable.

3. Cover plate installation after welding.

  With two stage car from two side on paper paper.



Raw materials and related:

1. Rail and tractor materials: tang steel, jinan in profile.

2. Bearing: HRB brand.



3- Roller Machine for Single Face paperboard:

1. Working Width: 1200mm.

2. Speed: 80-100m/min.

3. Max. diameter: 1400mm.

4. This machine occupied small space, saving labor, it is the best choice for the low speed machine.

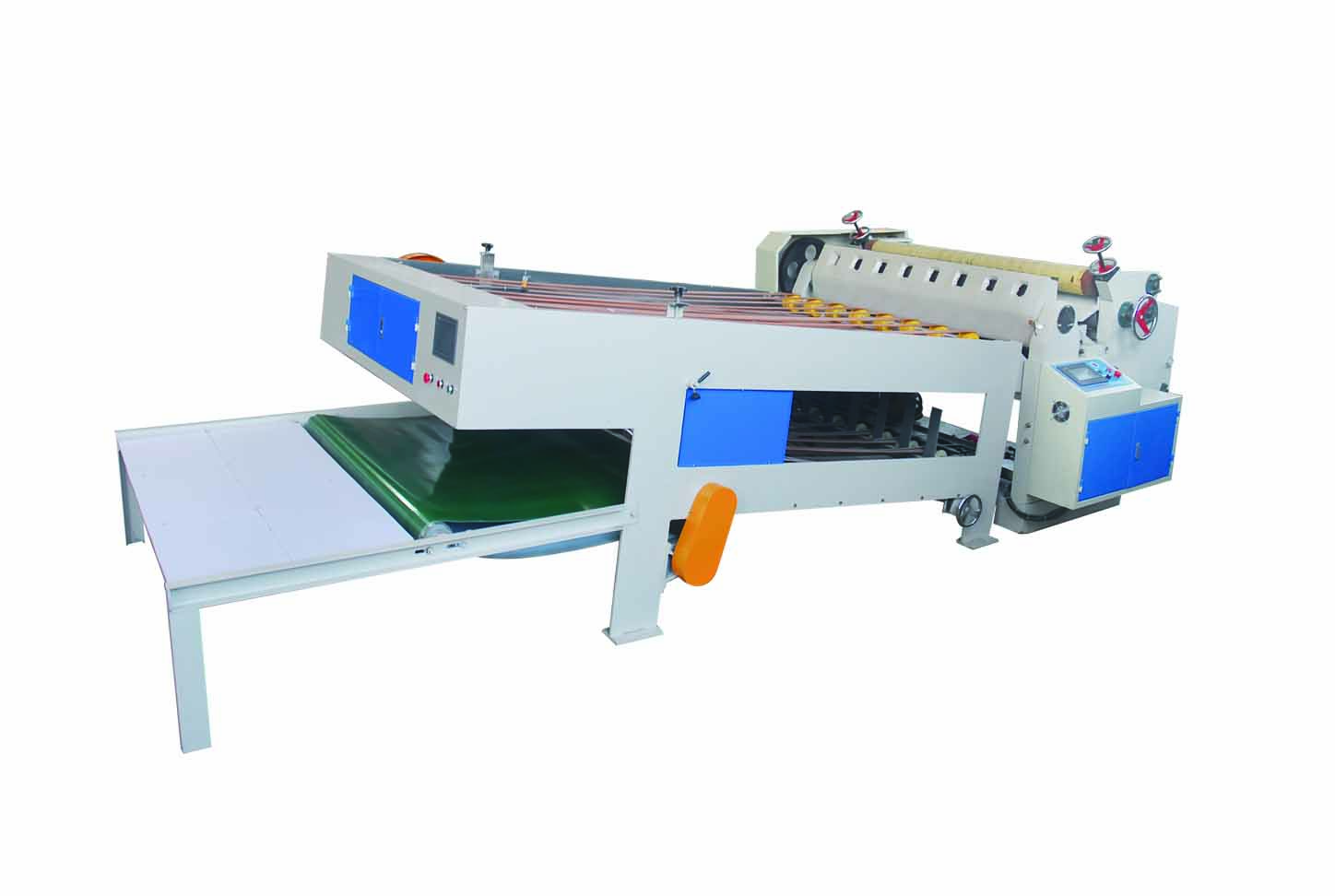

4. NC Single Face paperboard Cutter & Automatic Stacker



Characteristics:

1. Can save more than 200groups order, can change cutting size exactly in short time without stop, can connect to computer system, this makes the production management good.

2. Drive system has high precision.

3. Knife has good and stable quality, usage life is long.

4. Roll for leading paperboard has anti-skid material cover, more wear-resisting, size is correct.

5. Servo control motor drive, 5.7 inch Colorful touch screen, you can check every item clearly.

6. The machine can automatic count, automatic stack, automatic separate the pale without stop the machine.

7. This machine occupied small space, saving labor, it is the best choice for the low speed machine.



Main Technological Parameters:

1. Max. cutting width: 1200mm.

2. Design Speed: 100m/min.

3. Max. Working speed: 60-80m/min.

4. Min. Cutting length: 100mm.

5. Max. Cutting length: 9000mm.

6. Cutting precision: ±1.5mm (stable speed).

7. Max. Stack length: 1350mm.

8. Max. Stack height: 100mm.

Product center

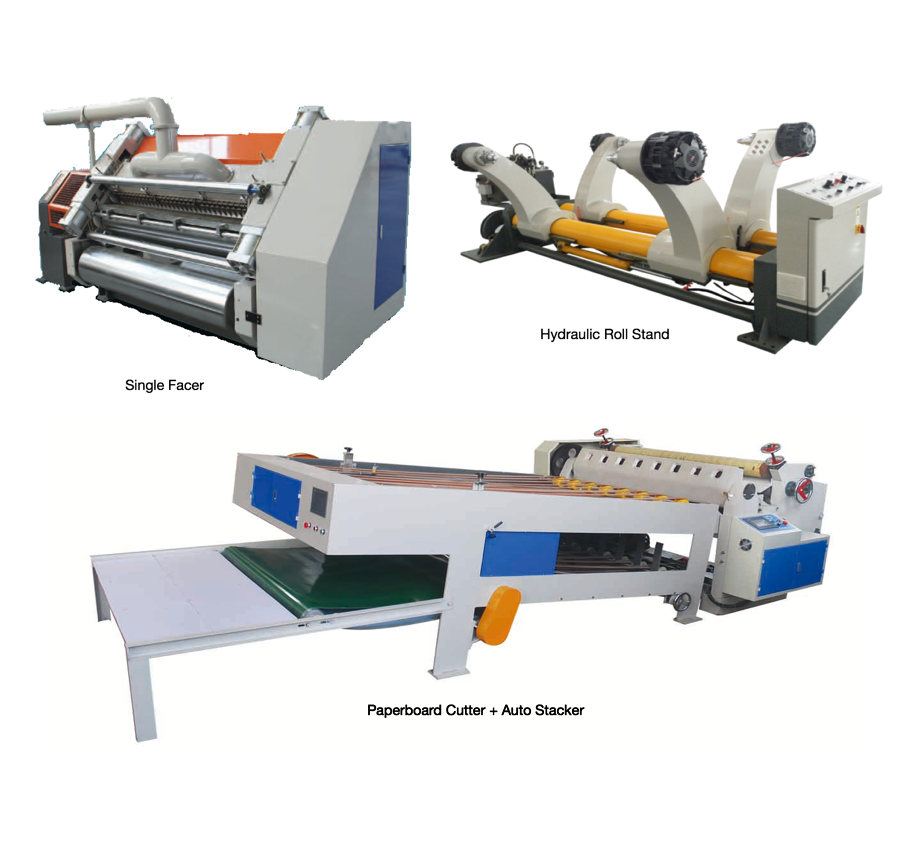

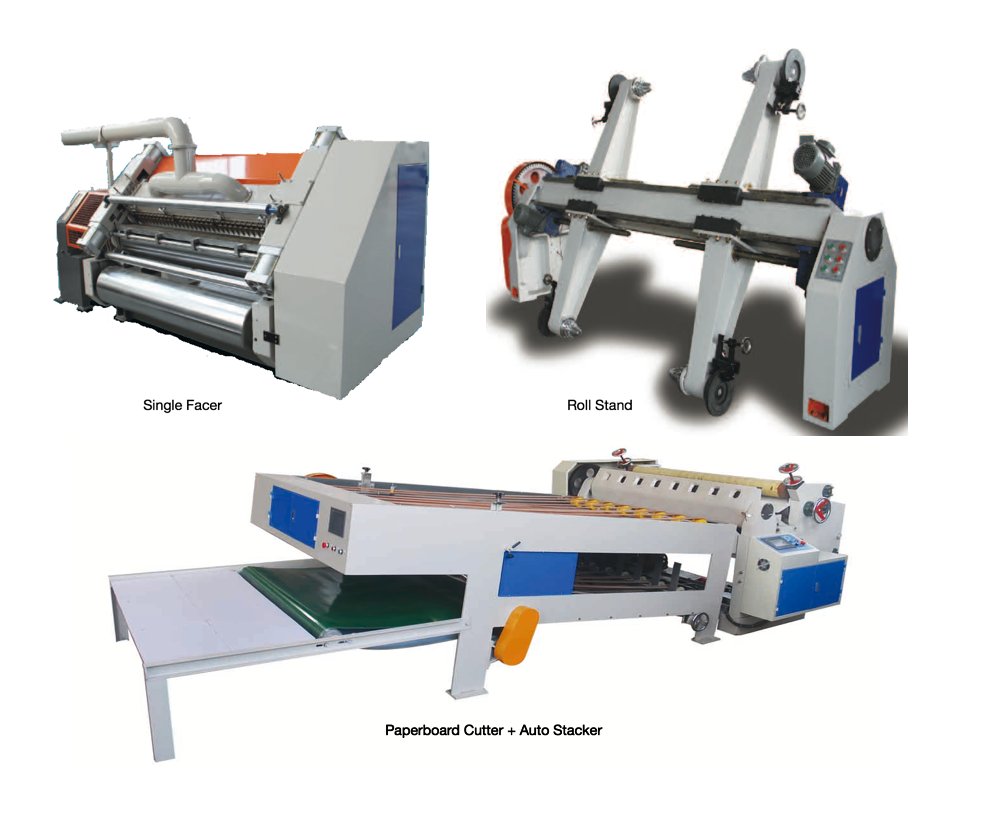

ROYAL PACKING MJSGL-1 Single Facer Line
