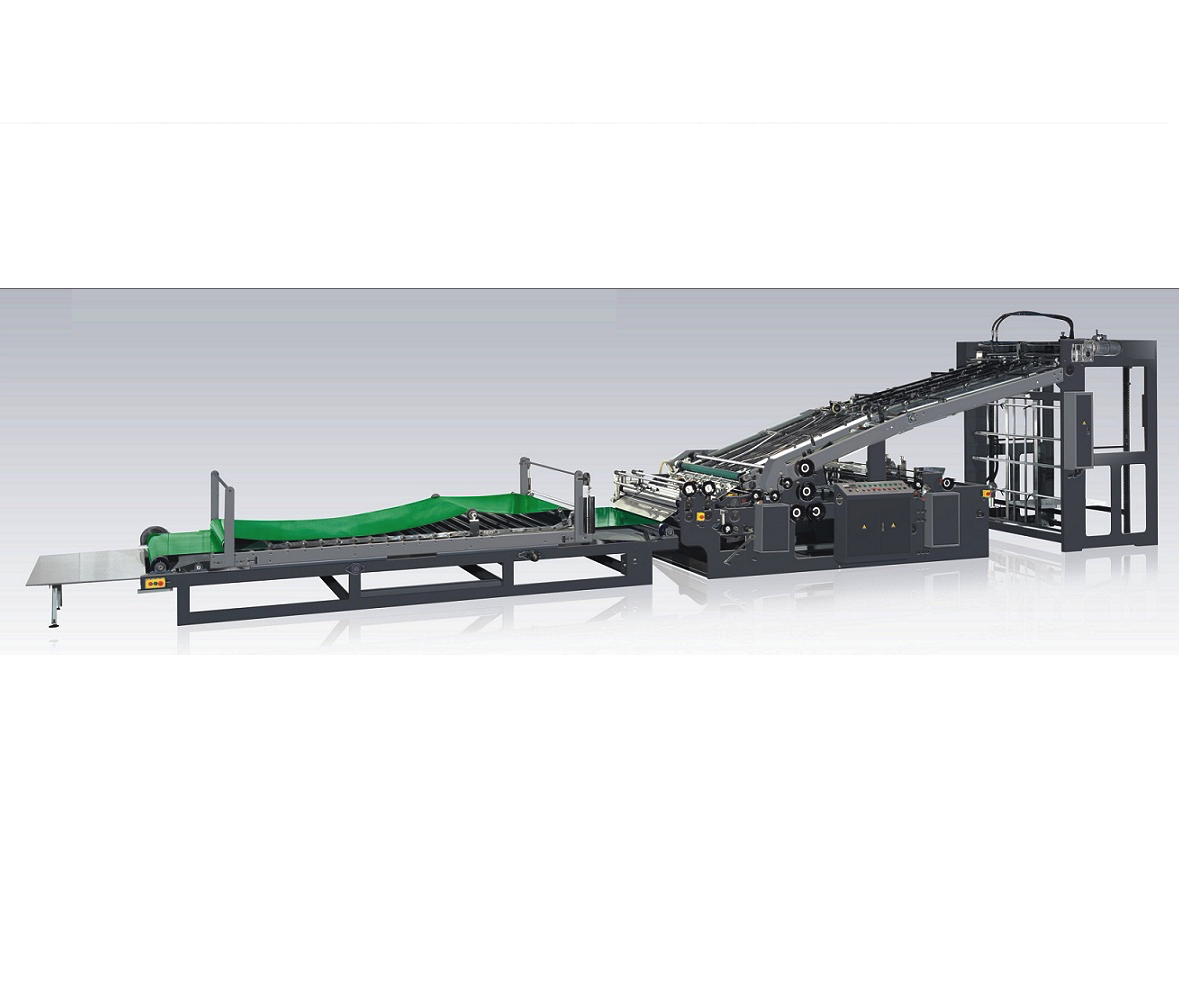

MJBZJ-1 Series Automatic Flute Laminating Machine
Specifications
Model |
MJBZJ-1-1300 |
MJBZJ-1-1450 |
MJBZJ-1-1600 |
Maximum size (W*L) |
1300*1100mm |
1450*1450mm |
1600*1400mm |
Minimum size (W*L) |
380*380mm |
380*380mm |
400*400mm |
Max Machine Speed |
6000sheets/h |
6000sheets/h |
6000sheets/h |
Total power |
11.65kw |
11.65kw |
15.3kw |
Total weight |
6800kgs |
7200kgs |
8000kgs |
Dimensions (L*W*H) |
14800*2150*2500 mm |
14800*2300*2500 mm |
15570*2450*2500 mm |
Top paper |
200-600GSM |
||
Bottom paper |
A B C D E F G Flute corrugated board, Cardboard more than 250 gsm. |
3. Performance of the machine
- MJBZJ Series Automatic Flute Laminator adopts chain pusher and back registration system together with spring blade side lay and vacuum sucking conveying system makes this series of machine fit for a larger range of paper, high precision while remaining the features of easy operation and maintenance.
- The core designed rubber roller together with knurled steel roller enhances the evenness of gluing, strength of stickiness, as well as lowering the production cost.
- Balance-tested rollers, tight assembling technique, plus timing and tooth belt driving mechanic system makes the machine runs at low noise with high precision.
- The machine adopts automatic glue supply and recyclable glue circulating system
- Self-developed high-strength feeder compliant with high configuration electric system makes the machine run at low malfunction and stable. The electric parts used are all world wide available brand or well-known Chinese brand.
- All material are inspected according to ISO-9001 standard and the key parts such as the harmonic gear and bearings are imported ones.
- The bottom sheet for this machine can be A,B,C,E,F flute corrugated sheet as well as cardboard not less than 250gsm. It can do 3 or 5 ply board to sheet lamination or board to board lamination. The range for top paper can be 200-800 GSM or 3 ply laminated board with top paper advance or alignment function.
- Less vibration and low noise.
- CE certificate available.
- Gluing even: 25-35gsm. Quite cost effective for your production.
- Side lay registration is installed on the machine.
4. Configuration
NO. |
Name |
Manufacturer |
1 |
Phase regulator |
HARMONIC,JAPAN |
2 |
Air pump for feeder |
TONGYOU |
3 |
Chain for feeder |
Eurochain, GERMANY |
4 |
Press conveyor |
SIEGLING,GERMANY |
5 |
Suction belt for bottom sheet |
NITTA,JAPAN |
6 |
Toothed belt |
GATES,USA |
7 |
Double toothed belt |
GATES,USA |
8 |
Contactor, Relay |
SCHNEIDER |
9 |
Bearings for key parts |
IKO,JAPAN,UBC,USA |
10 |
Blower |
EMOREHORN,TAIWAN |
11 |
Electromagnetic clutch |
TRANTEX,TAIWAN |
12 |
Electromagnetic Brake |
MIKI,JAPAN |
13 |
Glue level controller |
ANLY,TAIWAN |
14 |
Buttons and lamps |
SCHNEIDER |
15 |
Frequency Converter |
DELTA,TAIWAN |
16 |
PLC |
DELTA,TAIWAN |
17 |
Stabilized voltage supply |
OMLON |
18 |
Photoelectric switch |
FOTEK |
19 |
Feeder head |
OWN MADE,4 SUCTION,4 FORWARDING,ANTI-LOCK |
5. List of the electric components
NO. |
NAME |
Specification |
Qty |
Manufacturer |
1 |
Main motor |
Y2-112M-4 4.0KW |
1 |
WENBAO |
2 |
Lifting Motor |
GV-40-750-180SB 0.75KW |
1 |
WANSHSIN |
3 |
Glue pump motor |
Y2-80M1-4 0 .55KW |
1 |
WENBAO |
4 |
Blower |
EHS-529 |
1 |
EMOREHORN |
5 |
Air pump |
ZYBW80E |
1 |
TONGYOU |
6 |
Gear reducer motor for conveyor |
OV400-A 0.4KW OH32 (1:100) |
1 |
OTT,SHANGHAI |
7 |
PLC |
DVP-60ES |
1 |
DELTA |
8 |
Frequency converter |
3.7KW 3phase EL |
1 |
DELTA |
9 |
AC contactor |
LC1-E40M7C |
1 |
SCHNEIDER |
10 |
AC contactor |
LC1E0910M5N |
6 |
SCHNEIDER |
11 |
Interlocker module |
LA9E09978C |
1 |
SCHNEIDER |
12 |
AC contactor |
LC1E1201M5N |
2 |
SCHNEIDER |
13 |
Stabilized voltage supply |
S-50-24 |
1 |
MEAN WELL |
14 |
Solid state relay |
SSR-40DA |
2 |
FOTEK |
15 |
Breaker |
DZ15-40 |
1 |
TENGEN |
16 |
Liquid level controller |
A61F-G |
1 |
ANLY |
17 |
Counter |
TCN-P61B |
1 |
YATAI,SHANGHAI |
18 |
Bell |
HRB-P80 |
1 |
NANZHOU |
19 |
Intermediate relay |
RXM2AB2P7 220V |
3 |
SCHNEIDER |
20 |
Intermediate relay |
RXM2AB2P7 220V |
2 |
SCHNEIDER |
21 |
Stand for Intermediate relay |
RXZE2S108M |
5 |
SCHNEIDER |
22 |
Thermal relay |
LRE14N-7-10A |
1 |
SCHNEIDER |
23 |
Thermal relay |
LRE07N-1.6-2.5A |
1 |
SCHNEIDER |
24 |
Thermal relay |
LRE12N 5.5-8A |
1 |
SCHNEIDER |
25 |
Thermal relay |
LRE08N-2.5-4A |
1 |
SCHNEIDER |
26 |
Transformer |
BK-700VA |
1 |
SHENZHEN |
27 |
Rectifier |
KBPC1010 |
3 |
|
28 |
Fuse stand |
RT18-32X-1P |
5 |
TENGEN |
29 |
Fuse |
RT14-20 6A |
5 |
TENGEN |
30 |
Time relay |
H3Y-2 220V |
1 |
MEAN WELL |
31 |
Stand for time relay |
PYF08A-E |
1 |
MEAN WELL |
32 |
Potentiometer |
RV24YN20SB503 5.6K |
2 |
SCHNEIDER |
33 |
Terminal |
TBR-10A |
126 |
SCHNEIDER |
34 |
Terminal |
IN12BKC 20A |
8 |
SCHNEIDER |
35 |
Terminal |
IN411BK-C 60A |
5 |
SCHNEIDER |
36 |
Terminal board |
IN-F |
7 |
SCHNEIDER |
37 |
Red button with lamp |
ZB2BW34C |
1 |
SCHNEIDER |
38 |
Stand for red button with lamp |
ZB2BWM41C |
1 |
SCHNEIDER |
39 |
Green button with lamp |
ZB2BWM33C |
7 |
SCHNEIDER |
40 |
Stand for green button with lamp |
ZB2BWM61C |
7 |
SCHNEIDER |
41 |
Green lamp |
220V |
7 |
SCHNEIDER |
42 |
Red button |
ZB2BA4C |
13 |
SCHNEIDER |
43 |
Emergency sotp button |
ZB2BS54C |
3 |
SCHNEIDER |
44 |
Two-position selector switch |
ZB2BD2C |
4 |
SCHNEIDER |
45 |
Green button |
ZB2BA3C |
5 |
SCHNEIDER |
46 |
Fan |
120*120-38 |
2 |
SCHNEIDER |
47 |
Limit switch |
TZ-8166 |
3 |
CNTD |
48 |
Limit switch |
CWLCA2-2 |
2 |
CNTD |
49 |
Limit switch for feeder |
TZ8112 |
1 |
CNTD |
50 |
Sensor |
CDR-10X |
2 |
FOTEK |
51 |
Proximity switch |
PM12-04N |
4 |
FOTEK |
52 |
Proximity switch |
TL-Q5MC1 |
1 |
FOTEK |
-
