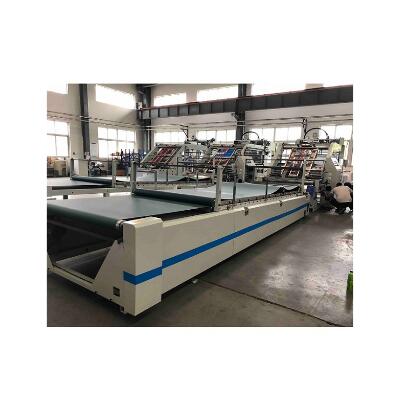

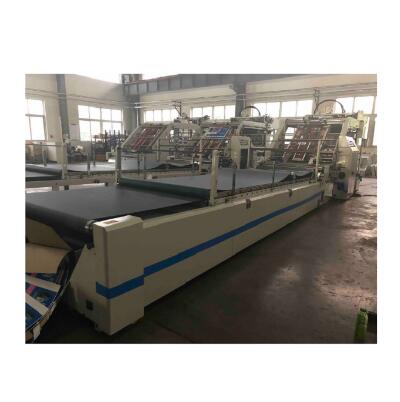

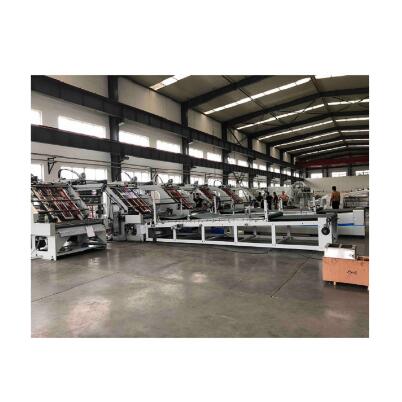

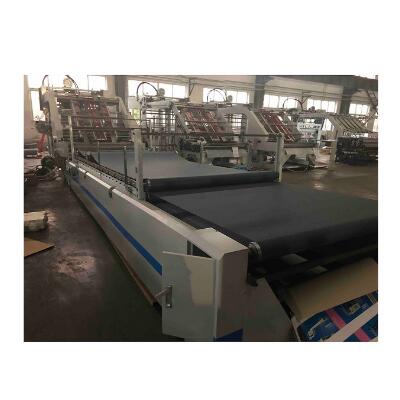

MJBZJ-4 High Speed Automatic Flute Laminator

Specifications

MODEL

MJBZJ-4-1450

MJBZJ-4-1650

Max. Sheet Size

1450*1450mm

1650*1600mm

Min. Sheet Size

450*450mm

450*450mm

Max.Weight for Top Sheet

550g/m²

550g/m²

Min. Weight for Top Sheet

157g/m²

157g/m²

Max. Thickness of Bottom Sheet

 10mm

 10mm

Min. Thickness of Bottom Sheet

 0.5mm

 0.5mm

Max. Laminating Speed

150m/min

150m/min

Lamination precise

+/-1.5mm

+/-1.5mm

Total power

22KW

22KW

Overall dimensions (L*W*H)

15000*2250*2350mm

15600*2450*2350mm

Total weight

7100kg

7500kg



II. Features of the Machine:

1. E shape lifting board used for the feeding unit enables sheets to be pushed into position by hydraulic jack. Rail with pre-piling device are available for option.

2. Self-made four sucking and four forwarding suckers for the feeder ensures smooth running with no missing of sheet even at high speed.

3. Sensing and compensation and alignment device uses several group of sensors to sense the relative position of the running corrugated board so that two servo motors at left and right side for the top paper can drive independently to align top paper with corrugated paper with high accuracy and high speed.

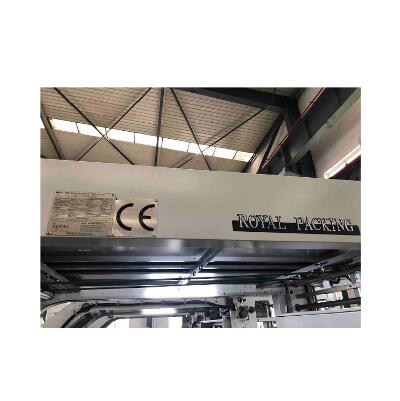

4. Global-functional electric control system with touch screen and PLC program monitors automatically the working condition and facilitate trouble shooting. The electric design conforms to the CE standard.

5. Gluing unit uses high precise coating wheels, together with specially designed metering steel roller enhances the evenness of gluing.The unique gluing wheel with glue stopping device and automatic glue level control system guarantees backflow with no overflow of glue.

6. Machine frames are processed by CNC lathe in one process, which ensures the precise of every positions. Toothed belts for transferring guarantees smooth running with low noise. Motors and the spares uses Chinese famous brand with high efficiency, less trouble and long service life.

7. Corrugated board feeding unit adopts powerful servo motor control system with the features of high sensitivity and fast speed. The suction unit uses high-pressure blowerSMC high- flow control valve as well as unique dust collection filter boxwhich enhances suction force for different corrugated paper, ensuring smooth running with no double or more sheets, no missing sheet.



III. Main electric configuration

No.

Name

Manufacturer

Model

Specification

1

PLC

DELTA

DVP-80EH00T

40in 40out

2

PLC extension

DELTA

DVP-16HM11N

16in

3

Touch screen

DELTA

DOP-07S411

7 INCH

4

Frequency converter

DELTA

VFD-E

3.7KW

5

Frequency converter

DELTA

VFD-E

1.5KW

6

Frequency converter

DELTA

VFD-E

0.75KW

7

Control card

TRIO



MC-401

8

Tracking Servo controller

YASKAWA

SGDV-2R8A01B

400W

9

Servo controller for bottom paper

YASKAWA

SGD7S-470A00A

6KW

10

Servo controller for bottom paper

YASKAWA

SGDV-330A01A

4.4KW

11

Isolation transformer





6KW

12

Encoder

KOYO

5V 1000

TRD-2T1000V

13

Photoelectric switch

OMRON

E3T-SL23

PNP

14

Photoelectric switch

FOTEK

CDR-10X



15

Photoelectric switch

OMRON

EE-SX670P

PNP

16

Proximity switch

FOTEK

PL-08P



17

Solid relay



SDP-1110D

DC-DC

18

Solid relay



SSR-40DA

DC-AC

19

Control transformer

TENGEN

BK-300

380V/220V

20

Stabilized voltage supply

MEANWELL

S-250-24

220V/24V

21

Glue level controller







23

Breaker

SCHNEIDER

NSC 60 E3 040

380V 3P 60A

24

Contactor

SCHNEIDER

LC1-E0910

AC220V 9A

25

Contactor

SCHNEIDER

LC1-E3210

AC220V 32A

26

Contactor

SCHNEIDER

LC1-E1201

AC220V 12A

27

Thermal relay

SCHNEIDER



7-10A

28

Thermal relay

SCHNEIDER



1.6-2.5A

29

Thermal relay

SCHNEIDER



1-1.6A

30

Intermediate relay

SCHNEIDER

RXM2LB2BD

DC24V 5A
