Royal Packing RYHC-B/BL/BLC Semi-automatic Die Cutting Machine

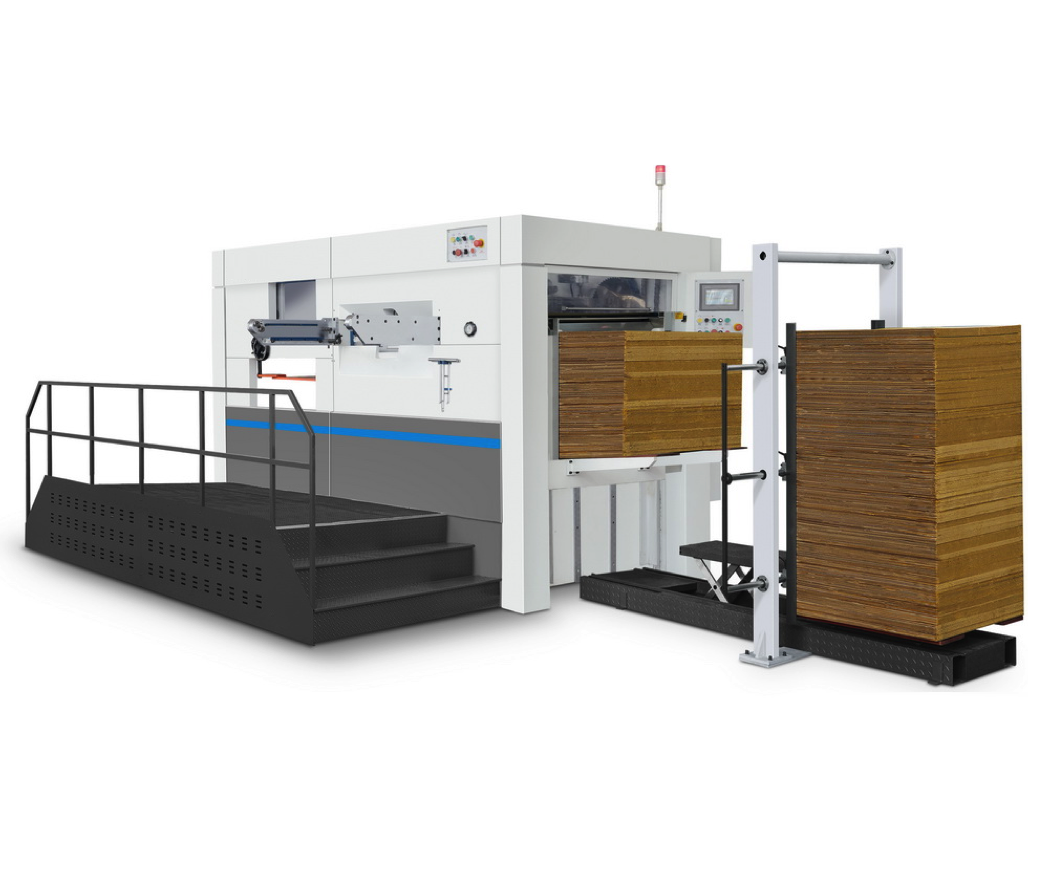

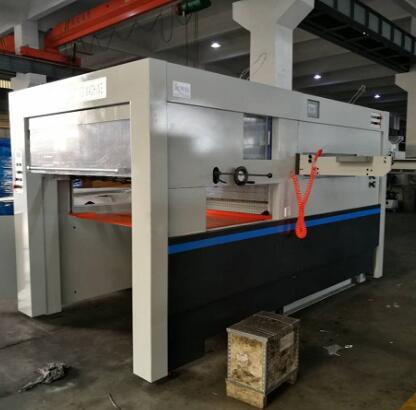

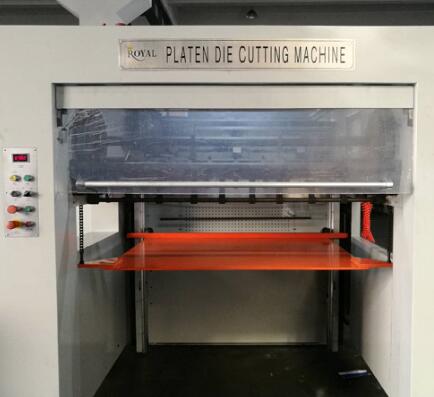

B model: Semi-automatic die cutting machine without front conveyor delivery mechanism

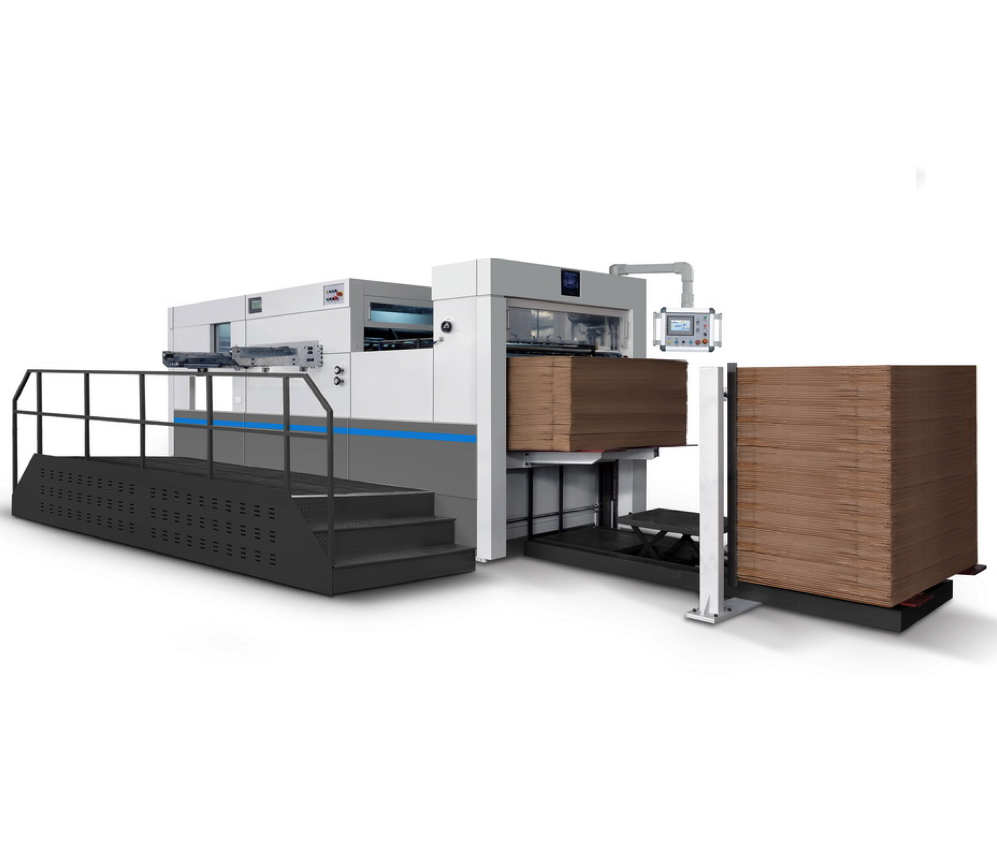

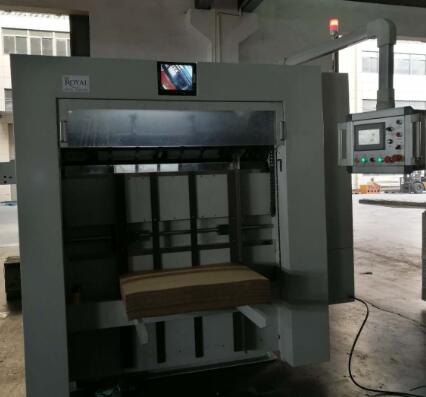

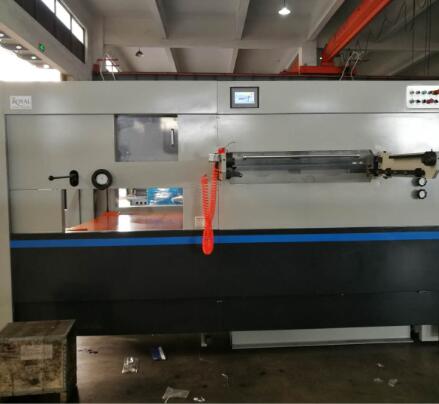

BL model: Semi-automatic die cutting machine with front conveyor delivery mechanism
BLC model: Semi-automatic die cutting machine with front conveyor delivery mechanism and stripping
Brief Introduction to Equipment:
RYHC series Semi-automatic Die Cutting Machine ‘s development is combined with advantages of similar products in domestic and overseas, is special equipment for packing products such as cartons and paper boxes. Gripper bars with high intensity are applicable to all kinds of cardboard, paperboard and corrugated paper. Frontal, back and side registration mechanism ensures great precision of die cutting. Other parts are adopted such as intermittent mechanism with high precision, pneumatic clutch and pneumatic closed up mechanism, programmable controller and man-machine interface. The interface can display various digital information of machine such as working speed, amount of paper processed, total running time, etc. It is easy to eliminate troubles according to the display of trouble shooting. Transducer is adopted to control the main motor in achieving step-less speed variation.
(1) Adopt nodular cast iron-QT500-7, the machine body casting by special Technology process, thus featuring by high strength, never deformation and ensure the safety of the machine body.
(2) Adopt Taiwan-imported intermittent mechanism to ensure that the machine operates accurately and reduce the occurrence of failure rate.
(3) The whole machine all uses SKF\NSK imported original bearing.
(4) The whole machine uses original parts imported from France Schneider, and Japanese OMRON, etc.
(5) Key parts of teeth row are imported from Japan.
(6) Die cutting accuracy reach to ±0.1mm .
(7) The craft shaft is adopts Germany Ni-Cr-Mo metal steel, with high precision and will never deforms.
(8) Use the centerline positioning system to realize fast plate changing of worksheet.
(9) Equiped with Dayuan first-developed pressure automatic adjustment device, ensure fast and smooth when they adjusting of die cutting pressure.
(10) Die-cutting plate frame adopts auxiliary plate-installation device, to realize different of model machines can be use universal die-cutting plate .
(11) Equip with touch-screen operation interface in both Chinese and English.
(12) All adopt Taiwan AIRTAC pneumatic components to ensure every pneumatic action performs accurately.

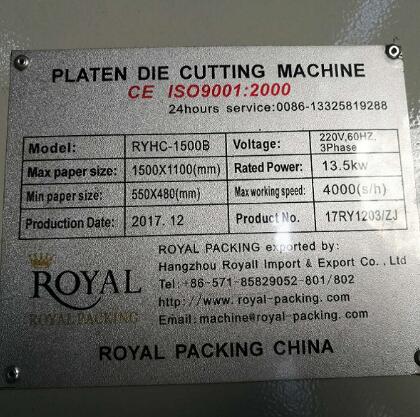

Technical Parameters:
Model |
RYHC-1100 |
RYHC-1300 |
RYHC-1500 |
RYHC-1650 |
RYHC-1900 |
Max paper size (mm) |
1100X790 |
1300X940 |
1500X1100 |
1650X1200 |
1900X1400 |
Min paper size (mm) |
400X350 |
470X420 |
470X420 |
550X500 |
650X550 |
Max die-cutting size (mm) |
1070X770 |
1280X920 |
1480X1080 |
1620X1180 |
1870X1380 |
Max working speed |
6000S/H |
5000S/H |
5000S/H |
4000S/H |
3500S/H |
Rated Power |
11kw |
13.5kw |
13.5kw |
19.7kw |
22kw |
Max working pressure |
300t |
300t |
300t |
300t |
300t |
Machine weight (ton) |
14/15t |
16/17t |
18/19t |
21/22t |
29/30t |
Scope of application Paperboard |
E, B, C, A and AB flute Corrugated paperboard (1-8.5mm thickness) Cardboard≥250gsm. |
Configuration List:
SN. |
Name |
Brand |
Place of Origin |
|
1 |
Man-machine interface |
10.4TFT KUNLUNTONGTAI |
Sino-foreign joint venture |
|
2 |
Die pressing base plate |
7mm HIGH ALLOY PLATE |
Germany |
|
3 |
Electromagnetic clutch |
OMPI |
Italy |
|
4 |
Air pump |
SYG |
China |
|
5 |
Rotary joint |
OMPI |
Italy |
|
6 |
Main solenoid valve |
AIRTAC |
Taiwan |
|
7 |
Intermittent segmentation |
TAN TZU |
Taiwan |
|
8 |
Paper conveying belt |
NITTA |
Japan |
|
9 |
Worm and gear |
WANCENG |
Taiwan |
|
10 |
Crankshaft material |
Ni-Cr-Mo METAL STEEL |
Germany |
|
11 |
Inverter |
HUICHUAN |
China (listed company) |
|
12 |
Photoelectric switch |
OMRON |
Japan |
|
13 |
Indicator light |
SCHNEIDER |
France |
|
14 |
Sensor |
KEYENCE |
Japan |
|
15 |
Air cylinder |
AIRTAC |
Taiwan |
|
16 |
Vacuum pump |
SIEG |
Sino-foreign joint venture |
|
17 |
Pressure adjustment system |
Zhongyi |
China |
|
18 |
Main motor |
TECO |
Taiwan |
|
19 |
Main drive chain |
RENOLD |
England |
|
20 |
Secondary chain |
TSUBAKIMOTO |
Japan |
|
21 |
Cable |
TKD |
Germany |
|
22 |
Tooth row, tooth slice |
Kui |
Japan |
|
23 |
Wallboard and machine body structure |
QT500 -7 nodular cast iron |
Tianjin |
|
24 |
Air volume regulator |
AIRTAC |
Taiwan |
|
25 |
Brush |
JSCC |
China |
|
26 |
Lift motor of paper collecting platform |
CPG |
Taiwan |
|
27 |
Button |
SCHNEIDER |
France |
|
28 |
Program controller |
HUICHUAN |
China (listed company) |
|
29 |
Encoder |
OMRON |
Japan |
|
30 |
Oil pressure, pressure switch |
ELEPTROPEC |
Italy |
|
31 |
Proximity switch |
OMRON |
Japan |
|
32 |
Relay |
SCHNEIDER |
France |
|
33 |
Main paper feeding motor |
CPG |
Taiwan |
|
34 |
Linear guide |
ABBA |
Taiwan |
|
35 |
Bearing |
NSK |
Japan |
|
36 |
AC contactor |
SCHNEIDER |
France |
|
37 |
Safety relay |
SCHNEIDER |
France |
|
38 |
Security module |
SCHNEIDER |
France |
|
39 |
Circuit breaker |
SCHNEIDER |
France |
|
40 |
Wiring terminal |
SCHNEIDER |
France |
|
41 |
Button |
SCHNEIDER |
France |
|
42 |
Motor protector |
SCHNEIDER |
France |
|
43 |
Relay seat |
OMRON |
Japan |
|
44 |
Magnetic switch |
SCHNEIDER |
France |
|
45 |
Electromagnetic gear clutch |
OMPI |
Italy |
-
