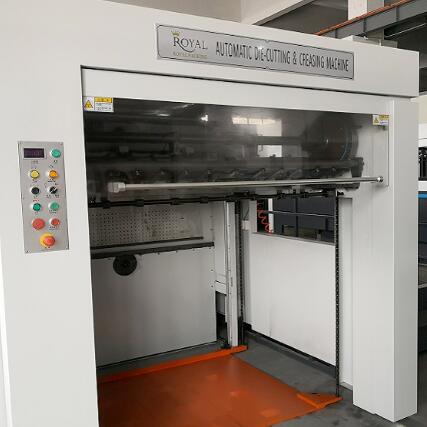

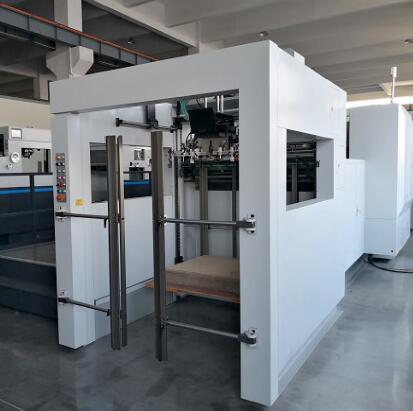

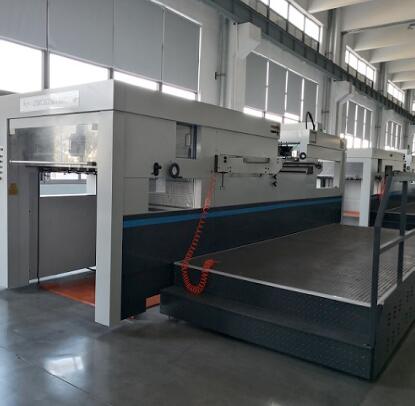

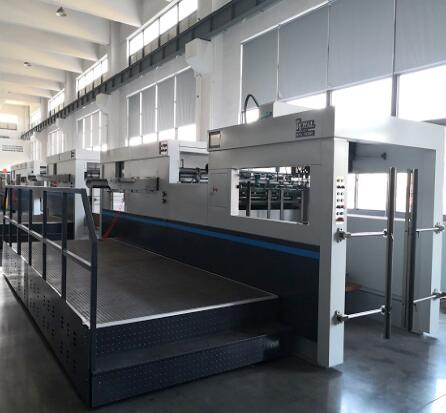

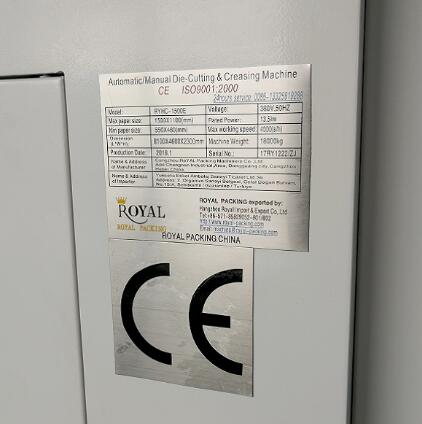

RYHC-E/EC Automated/Manual Flat Die Cutting Machine

BRIEF INTRODUCE:

The fourth generation of RYHC Series Automatic Manual Die Cutting Machine (Tiptronic Die Cutting Machine) based on the third generation of Semi-automatic Die Cutting Machine with Front Conveyor Delivery Mechanism, is equipped with automatic feeder, including both manual paper feeding and automatic feeder paper feeding function. On condition of flat corrugated paper, automatic feeder paper feeding is accepted with raising efficiency and reducing workforce. Manual paper feeding comes in handy on condition of uneven corrugated paper. This machine maintains multi-operational function, and its development is combined with advantages of similar products in domestic and overseas, is special equipment for packing products such as cartons and paper boxes. Gripper bars with high intensity are applicable to all kinds of cardboard, paperboard and corrugated paper. Frontal, back and side registration mechanism ensures great precision of die cutting. Other parts are adopted such as intermittent mechanism with high precision, pneumatic clutch and pneumatic closed up mechanism, programmable controller and man-machine interface. The interface can display various digital information of machine such as working speed, amount of paper processed, total running time, etc. It is easy to eliminate troubles according to the display of trouble shooting. Transducer is adopted to control the main motor in achieving step-less speed variation.

This machine is equipped with sensors and safety device to ensure normal operation of machine and safety of workers.



Technological Parameters:

Model

RYHC-1100

RYHC-1300

RYHC-1500

RYHC-1650

RYHC-1650

Max paper size (mm)

1100*790

1300*940

1500*1100

1650*1200

1900*1400

Min paper size (mm)

400*350

470*420

470*420

550*500

650*550

Max die-cutting size (mm)

1070*770

1280*920

1480*1080

1620*1180

1870*1380

Max working speed

6000(s/h)

5000(s/h)

5000(s/h)

4000(s/h)

3500(s/h)

Rated Power

11kw

13.5kw

13.5kw

19.7kw

22kw

Max working pressure

300(t)

300(t)

300(t)

300(t)

300(t)

Machine weight

14/15(t)

16/17(t)

18/19(t)

21/22(t)

27/28(t)

Scope of application

Whiteboard≥250g,

E, B, C, A and AB flute Corrugated paper 1-8.5mm



Configuration List

SN.

Name

Brand

Place of Origin

SN.

Name

Brand

Place of Origin

1

Main motor

SIEMENS

Germany

13

Man-machine interface

10.4TFT KUNLUNTONGTAI

China

2

Die pressing base plate

7mm

HIGH ALLOY PLATE

Germany

14

Indicator light

SCHNEIDER

France

3

Vacuum

BECKER

Germany

15

Circuit breaker

SCHNEIDER

France

4

Intermittent segmentation

TAN TZU

Taiwan

16

Safety relay

SCHNEIDER

France

5

Rotary joint

OMPI

Italy

17

Security module

SCHNEIDER

France

6

Electromagnetic clutch

OMPI

Italy

18

Button

SCHNEIDER

France

7

Electromagnetic gear clutch

OMPI

Italy

19

Motor protector

SCHNEIDER

France

8

Feeder

YONGCHUAN

Taiwan

20

Magnetic switch

SCHNEIDER

France

9

Crankshaft material

Ni-Cr-Mo METAL STEEL

Germany

21

AC contactor

SCHNEIDER

France

10

Main drive chain

RENOLD

England

22

Button

SCHNEIDER

France

11

Secondary chain

TSUBAKIMOTO

Japan

23

Relay

SCHNEIDER

France

12

Tooth row, tooth slice

KUI

Japan

24

Inverter

HUICHUAN

China

25

Chip

HUICHUAN

China

35

Cable

TKD

Germany

26

Control center

HUICHUAN

China

36

Air cylinder

AIRTAC

Taiwan

27

Program controller

HUICHUAN

China

37

Air volume regulator

AIRTAC

Taiwan

28

Photoelectric switch

OMRON

Japan

38

Main solenoid valve

AIRTAC

Taiwan

29

Relay seat

OMRON

Japan

39

Linear guide

ABBA

Taiwan

30

Proximity switch

OMRON

Japan

40

Worm and gear

WANCENG

Taiwan

31

Encoder

OMRON

Japan

41

Wallboard and machine body structure

QT500-7 nodular cast iron

China

32

Sensor

OMRON

Japan

42

Main paper feeding motor

DONGLI

Taiwan

33

Paper conveying belt

XINBEX

China

43

Lift motor of paper collecting platform

DONGLI

Taiwan

34

Bearing

NSK&HRB

Japan&China
