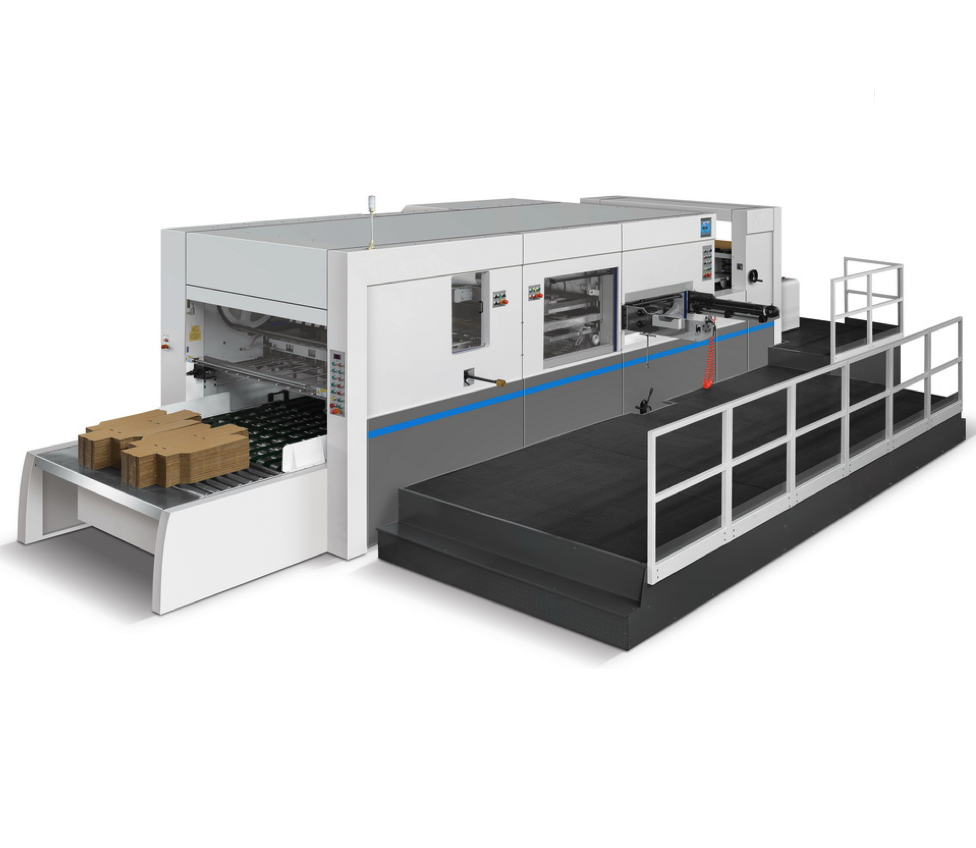

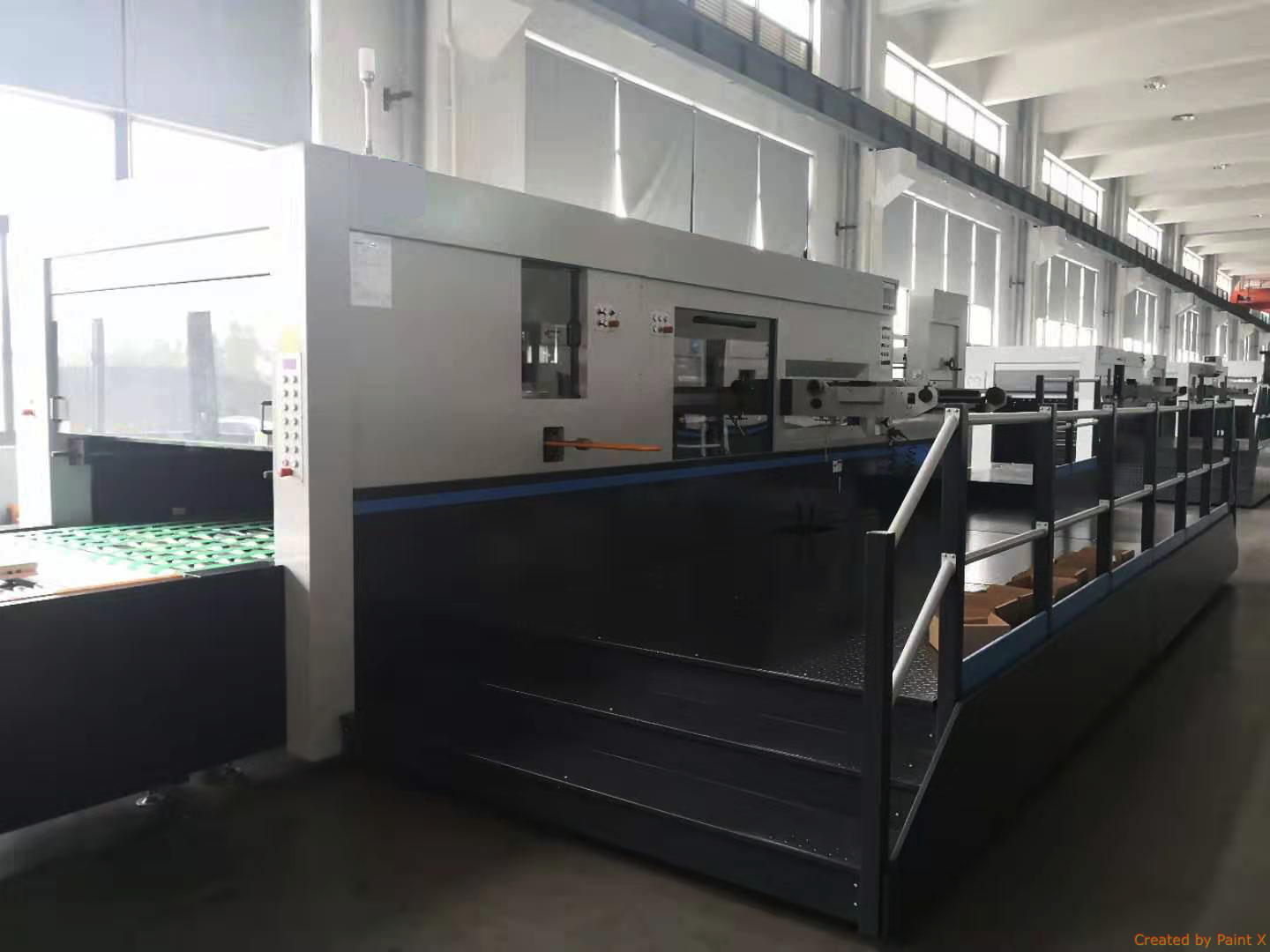

RYHK- FC  Automatic Die Cutting Machine with Stripping

The RYHK series Automatic Die-cutting & Creasing Machine with Stripping (Lead Edge Feeder)  can efficiently complete the die cutting and embossing of products, as well as maintaining the highest precision and product quality. The RYHK series Automatic Die-cutting & Creasing Machine with Stripping (Lead Edge Feeder)  is well equipped and almost can adapt to all die cutting requirements of products.

(1) Adopt nodular cast iron-QT500-7, the mainframe wallboard casting by special technology process, thus featuring by high strength, never deformation and ensure the safety of the mainframe wallboard.

(2) Adopt Taiwan-imported intermittent mechanism to ensure that the machine operates accurately. Also, the main engine is equipped with overload protection device and torque limit clutch, to ensure that when they being impacted by external force can stops immediately to reduce the damage to the machine body and teeth precision and reduce the occurrence of failure rate.

(3) The whole machine all uses SKF\NSK imported original bearing.

(4) The whole machine uses original parts imported from France Schneider, Japanese OMRON.

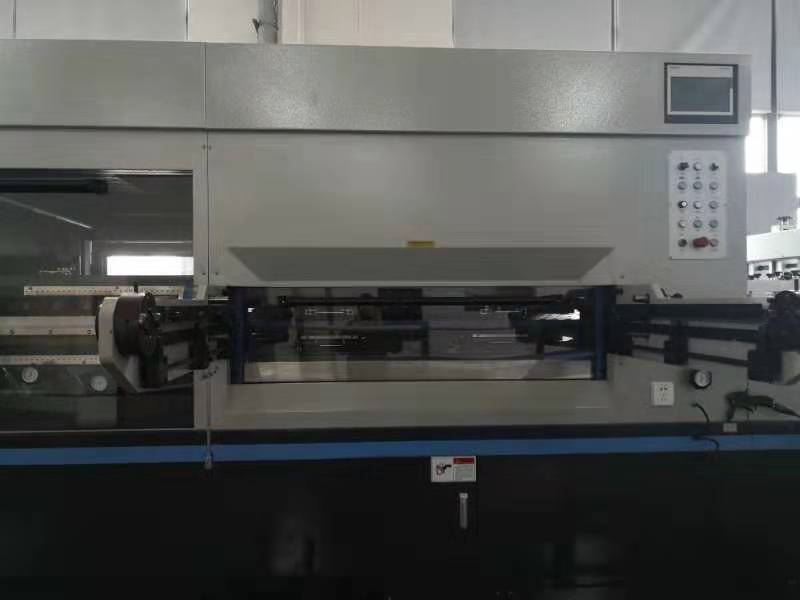

(5) Key parts of gripper bars are imported from Japan.

(6) The craft shaft is adopts Germany Ni-Cr-Mo metal steel, with high precision and will never deforms.

(7) Use the centerline positioning system to realize fast plate changing of worksheet.

(8) Equip with touch-screen operation interface in both Chinese and English.

(9) All adopt Taiwan AIRTAC pneumatic components to ensure every pneumatic action performs accurately.

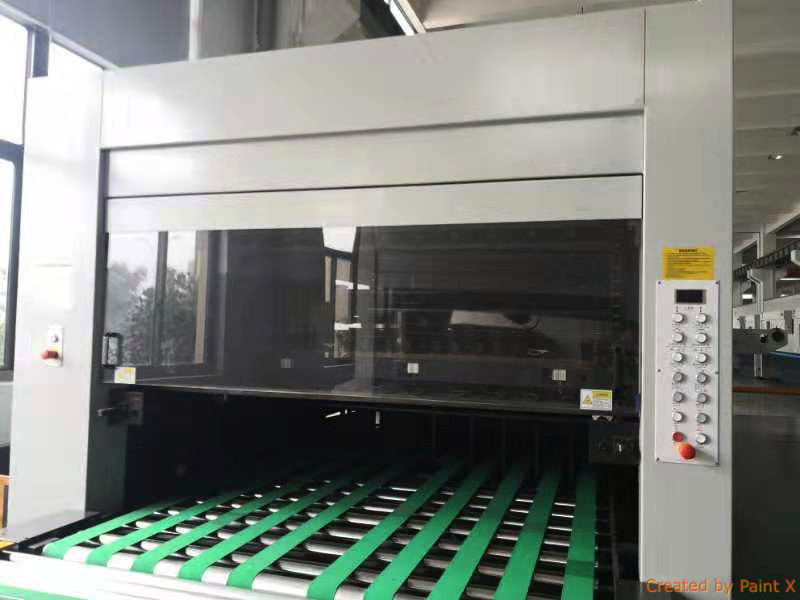

(10) Escalator delivery fork with non-stop air cylinder for neat and positive delivery and conveyor belt delivery table to protect the sheets from scratches;

(11) The side gauge adopts photoelectric system.

(12) Automatic force lubrication system recycles fluid

(13) The oil pump adopts automatic cooling fan device.

(14) Main motor from Siemens, ensure stable operation.

Features

  • CE approved
  • Center line system
  • Front waste separator
  • Non-stop delivery system
  • Human machine interface
  • Timing belt main drive
  • Overloading protection torque limit clutch
  • Automatic central lubrication system has been adopted to faclitate easier maintenance
  • Wide stock range for corrugated board
  • Photoelectrical device for safe operation
  • High speed and precision lead edge feeder equipped
  • ISO9001 and CE approved manufacturing process.
  • European, Taiwan and Japanese standard spare parts





Specification

MODEL

RYHK-1300

RYHK-1500

RYHK-1650

RYHK-1900

Maximum sheet size (mm)

1290*940

1500*1100

1650*1200

1900*1400

Minimum sheet size (mm)

550*450

550*450

650*450

650*450

Maximum cutting size (mm)

1280*920

1480*1080

1620*1180

1870*1380

Inner chase size (mm)

1310*970

1520*1130

1650*1230

1900*1430

Maximum cutting pressure

400 Tons

400 Tons

400 Tons

400 Tons

Stock range

B, E, C, A Flue and double wall

or corrugated board up to 8.5mm

Min. Gripper waste

12mm

12mm

12mm

12mm

Min. Gripper margin

6-12mm

6-12mm

6-12mm

6-12mm

Cutting rule height

23.8mm

23.8mm

23.8mm

23.8mm

Maximum speed

6000 s/h

6000 s/h

6000 s/h

5500 s/h

Max. Die-cutting pressure

400tons

400tons

400tons

450tons

Total power

25 KW

30 KW

38 KW

38 KW

Power supply

380V, 50HZ, 3PH

Mobile lower platen adjusting range

±1.5mm

±1.5mm

±1.5mm

±1.5mm

minimum front waste

12mm

12mm

12mm

12mm

Net Weight

20/21 Tons

23/24 Tons

34/35 Tons

37/38 Tons
