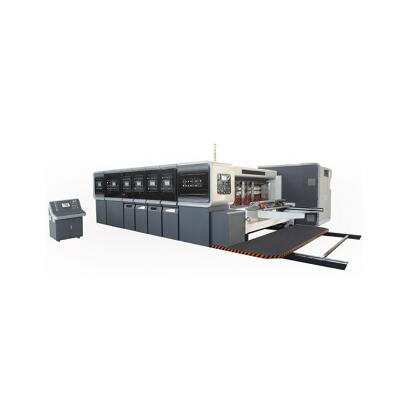

Flexo Folder Gluer RYPT model

Introduction:

ROYAL PACKING is professional producer for Flexo Printing & Slotting & Die-Cutting Machine, also include flexo folder gluer machine, which is Flexo printing & Slotting & Die-cutting & Inline folder gluer & Inline strapping. It is mainly used for printing the 3-layer, 5-layer, 7-layer corrugated paperboard, from 1color to 7color. We can design high precision printing for you also based on your requirement. Speed from 100pcs/min to 400pcs/mins for option.



More Details:

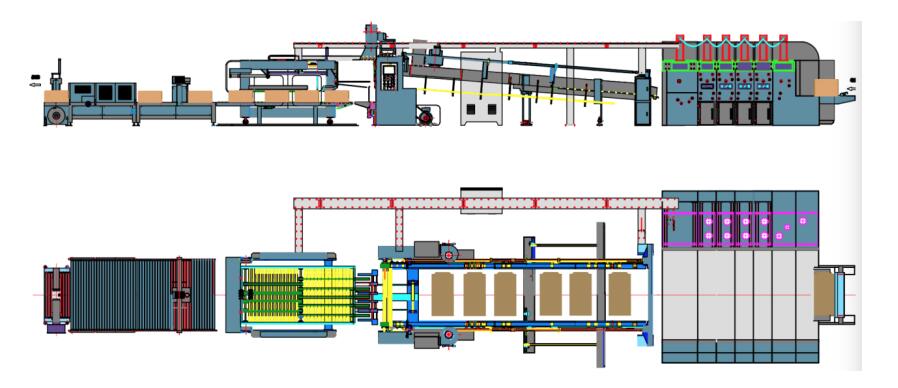

RYPT Flexo Folder Gluer

Top printing

(x color + Slotting + Diecutting+ Inline Folder gluer+ Inline Strapping)

.Machine introduction

This machine is component with the feeding unit, printing unit, Slotting unit, Die cutting unit. Can accomplish the process of the corrugate paperboard printing, water base oil coating (for option), Slotting and die cutting.

The materials of the body is Carbon steel after 20 hours heating treatment, thickness of body is 60mm,after second stage annealing, making by CNC machine, with high strength and high precision.

All the transmission gear is helical gear, with low noise and high precision, gears after high frequency heating and grinding, adopt automatic circle lubrication.

The gear material is 20CrMnTi alloy steel, after high frequency heating and grinding. And the main transmission gear and roller adopt expansion sleeve connection.

Bearing adopts the famous brand made in China like HRB and NSK.

The mail motor is TECO Taiwan, adopt frequency converters adjust, the frequency is “Delta” brand made in Taiwan, the PLC also adopt “Delta” brand made in Taiwan, the contactor adopt “Seimens” brand. The touch screen adopt Taiwan “Delta” brand.

Lead edge feed unit adopt AC motor drive, high precision and long life.

Doctor blade adopt KeRou brand from China famous brand.

Ceramic roller adopt HaiLi brand from China.
