Royal Packing Automatic Rotary Die-Cutting machine MJMQ-1
Introduction:
ROYAL PACKING is professional producer for Rotary Die-Cutting machine. Mainly includes: Semi-Automatic Rotary Die-Cutting machine, Full automatic Rotary Die-Cutting machine, Paperboard Rotary Flexible Die Cutting Machine, big and small sizes. We can offer to you suitable machine based on your requirement.
More Details:

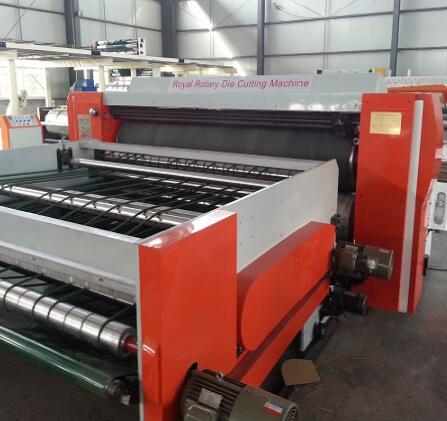

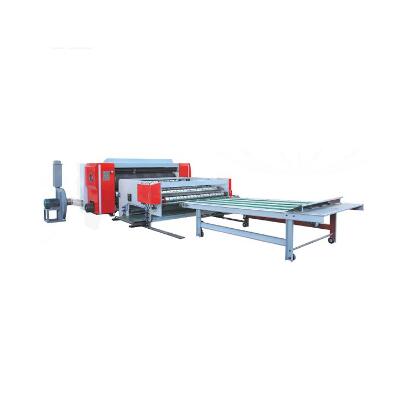

MJMQ-1 Automatic Rotary Die-cutting machine

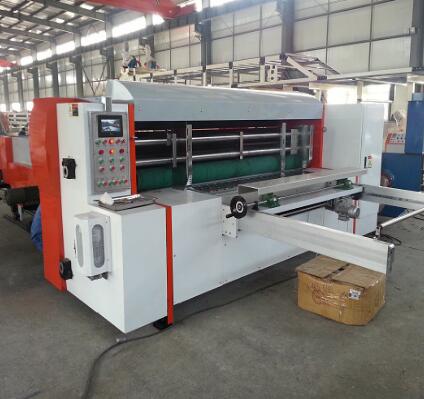

(Sun feeder)
(Stripping Part)

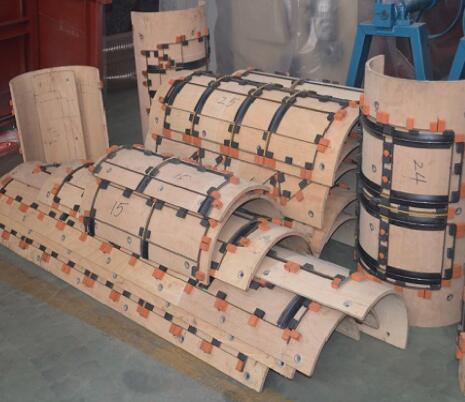

RDC Mould
Stacker
Introduction:
MJMQ-1 Series Rotatory Die-cutting Machine is designed as sun feeding. It is used for die-cutting corrugated paperboard and different kind atypic packages. The advantage of the machine is high efficiency, power save, good safety and so on. This machine use PU roller cover which is imported from Taiwan, the usage life is more than 10million times. The machine has the function of automatically line-speed compensation, this function makes the die-cutting size of the paperboard is exactly right even when the roller cover is attrited. The renovate structure 3times prolongs the life of the roller cover. The feeding system use chain transport. The operation and usage is very easy.
Technological Parameters:
Model |
Max. Paperboard (mm) |
Min. Paperboard (mm) |
Thickness (mm) |
Feeding speed (pcs/min) |
Power of main motor |
Machine Weight |
MJMQ-1-17A |
1700×1200 |
350×500 |
11mm |
0-200 |
4.0kw |
4500kg |
MJMQ-1-20A |
2000×1200 |
350×500 |
11mm |
0-180 |
5.5kw |
5000kg |
MJMQ-1-24A |
2400×1400 |
400×600 |
11mm |
0-160 |
7.5kw |
6000kg |
MJMQ-1-28A |
2800×1600 |
400×600 |
11mm |
0-160 |
15.0kw |
6000kg |

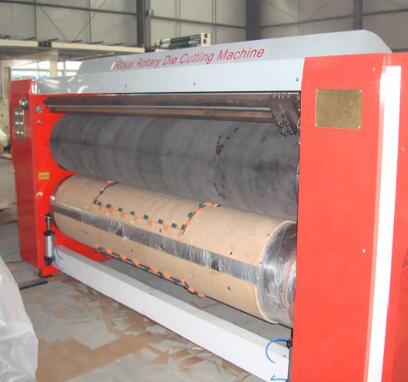

Die-Cutting Part:
1. Die-cutting roller for the high quality steel materials,30mm thickness, balance correction, hard-chrome plating.
2. Wallboard for high-quality cast iron material,50mm thickness, and large processing center production.
3. Soft-roll automatic grinding institutions to pouches repeat usage,grinding3-4times;
4. Line speed automatic compensation to ensure that each batch of cardboard boxes full of die-size line;
5. Use Imported Polyurethane soft rubber, ease of installation, can cut 12000000 times.;
6. Mechanical soft roll about 40 mm lateral movement ,the pads wear uniform;
7. 40cr material the use of grinding gears for 6,low noise long life;
8. Die-cutting roller cylinder automatic separation devices to reduce wear pouches.
Paper Feeding Part:
1. Adsorption automatic feeder, one-slotting, Cut corner, creasing, drilling.
2. Feed 10,000 per hour speed, precision die-cutting from+0.75mm to-0.75mm
3. Phase planetary gear used electric adjustment, turn on and turn down were quick adjustment.
4. Before manually adjust block cardboard side block electric adjustment
5. Paper rollers have a plastic face, to prevent cardboard, to increase feed accuracy.
Computer Part:
1. Man-machine interfaces, PLC precision control of the entire computer system
2. Main Motor Frequency Control.
3. On the control panel before and after the concise, easy to operate
4. The machine is by light, electricity, gas joint control system
5. Electrical accessories of the machine are brand-name.
-
