Paperboard Rotary Flexible Die Cutting Machine RYDP-A

Introduction:

ROYAL PACKING is professional producer for Rotary Die-Cutting machine. Mainly includes: Semi-Automatic Rotary Die-Cutting machine, Full automatic Rotary Die-Cutting machine, Paperboard Rotary Flexible Die Cutting Machine, big and small sizes. We can offer to you suitable machine based on your requirement.



More Details:

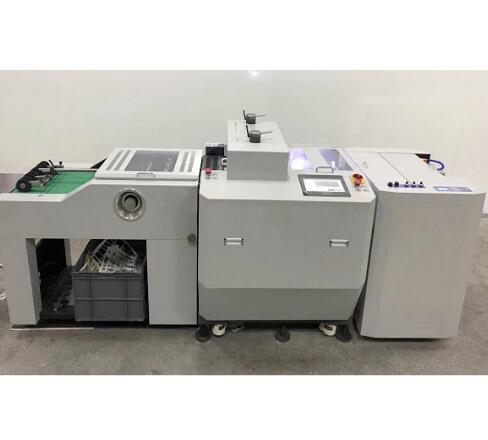

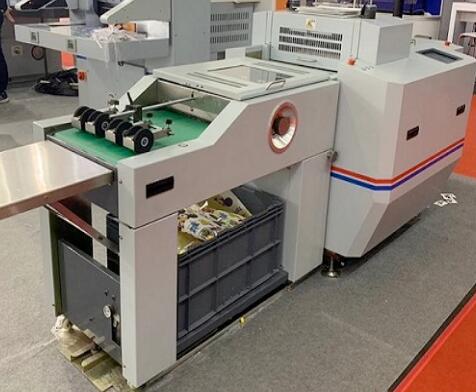

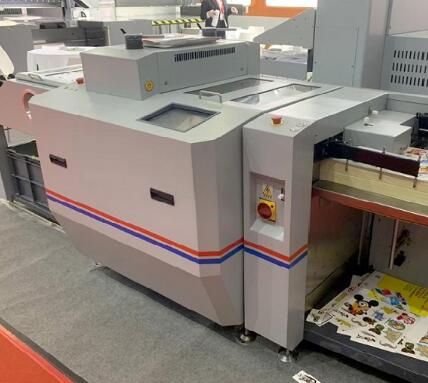

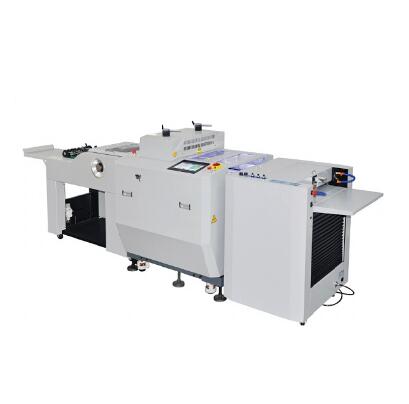

RYDP-A Paperboard Rotary Flexible Die Cutting Machine

RYDP-A4874 model

RYDP-A4055 model



Introduction:

  1. This Rotary Die Cutting Machine is a suitable equipment for different production. It is suitable for small batch and repeated production. It adopt flexible Dies mold and easy to replace.
  2. Through the flat-type paper feeder and positioning table, the paper enters the die-cutting section, and the positioning accuracy of the paper-feeding direction can reach ±0.1mm.
  3. Automatic paper lifting, automatic paper feeding, double sheet detection, chasing mark alignment die cutting, automatic deviation correction, automatic waste discharge and other functions.
  4. The separator section can be directed to blow away waste, and adjustment does not require tools.
  5. The separator section and collection section can be pushed away as a whole, providing maximum convenience for changing the mold.
  6. The wheel of separator section is Electrical control, Timing up and down, the final product will be output to the receiving table regularly.
  7. Automatic paper lifting, automatic paper feeding, double sheet detection, chasing mark alignment die cutting, automatic deviation correction, automatic waste discharge and other functions.
  8. Mainly suitable for stickers, tags, wine labels, playing cards, small boxes and so on. The processing materials are suitable for plain paper, coated paper, cardboard, PE film, and so on
  9. This section describes the sheet flow from the feed unit through the die cutter and the separator. The separator separates the cut product from the sheet.



Main Technical Parameters:

Model

RYDP-A4055

RYDP-A4874

Sheet size (before processing)

Max. Size

400X520mm

480X740mm

Min. Size

200X275mm

240X280mm

Material Thickness:

Die Cutting

0.2mm–0.5mm

127.9 to 400gsm

0.2mm–0.5mm

Max creasing

0.4mm

0.4mm

Final product size

(with separator)

Max. size

376mmX520mm

456mmX720mm

Min. size

50mmX80mm

50mmX80mm

Min. discharge width

5mm

5mm

Mold size:

Height:

0.8mm

1mm

Max size

400mmX560mm

480mmX750mm

Min size

160mmX100mm

160mmX100mm

X, Y direction die cutting accuracy

±0.1mm

±0.1mm

Feeder stack height:

500mm

500mm

Max Production Speed:

6000 cycles per hour

6000 cycles per hour

Main motor power:

4.5kw

4.5kw

Voltage:

200V-240V50Hz/60Hz Single Phase

200V-240V50Hz/60Hz Single Phase

Weight

1100kg

2440kg

Machine size

(L*W*H)

Without table (mm)

3680X980X1250

4620X1300X1650

With table (mm)

4380X980X1250

5320X1300X1650



Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .



Details:

Note

 The running speed of the machine is determined by the nature of the cut. When the cut is very large or very small, extremely thin or extra thick, the machine running speed should be reduced.

In order to improve the life of the machine, the machine generally reduces the running speed of the machine during the running-in period. The running speed during the running-in period should be less than 5000 cycles/hour, and the general running-in period is about half a year.
