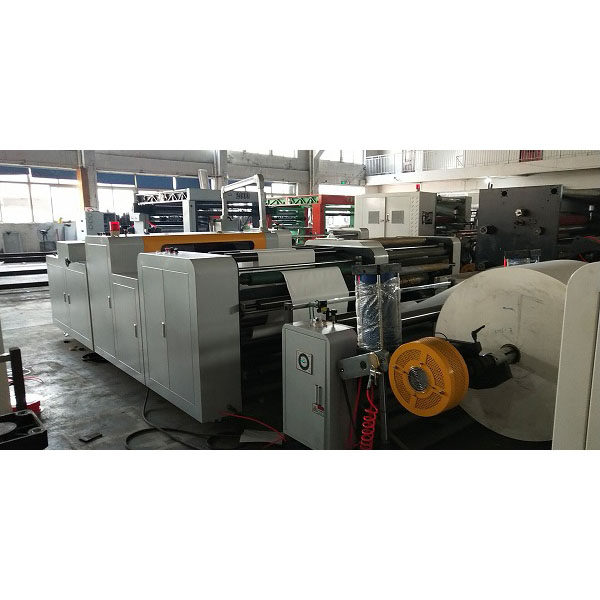

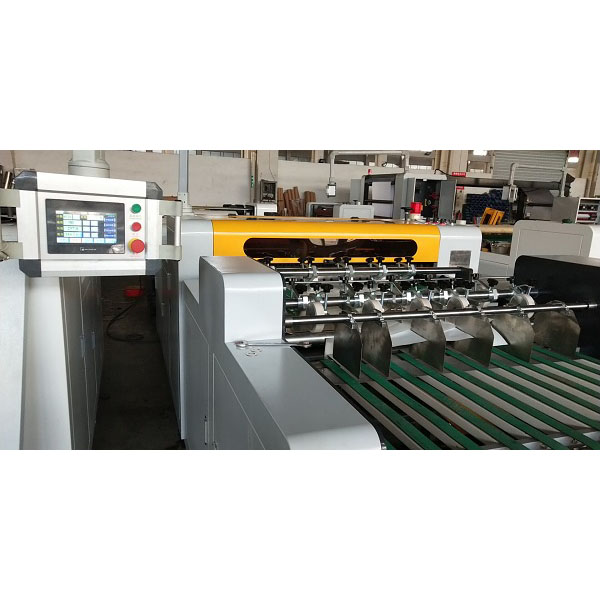

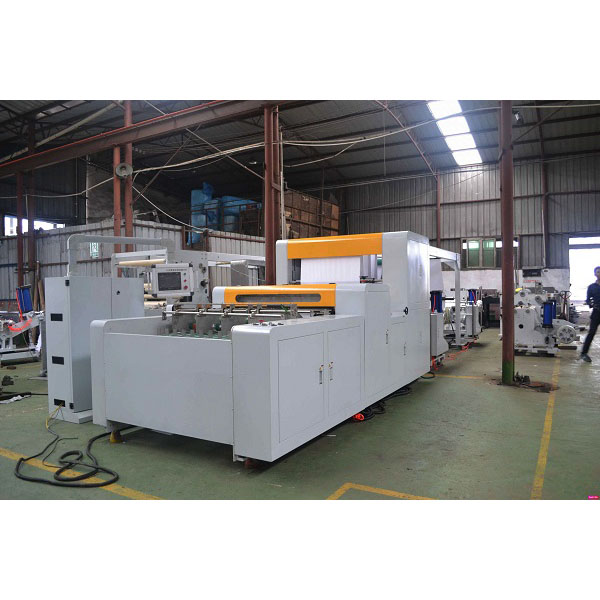

Royal Packing Automatic Paper Crosscutting Machine

Introduction:

This machine is specialist for horizontal and vertical cutting paper rolling materials to A4, A3, A2 size etc. it can be with 1 roll, or 2rolls, or 4 rolls etc



More details:

Automatic Paper Cross cutting Machine

Introduction:

This machine is specialist for horizontal and vertical cutting paper rolling materials to A4, A3, A2 size etc. it can be with 1 roll, or 2rolls, or 4 rolls etc





Main Technical Parameters:

Model

RYQJ-1100D

RYQJ-1400D

Max unwinding diameter

φ1100mm

φ1400mm

Reference weight of cutting paper

40~500g

40~500g

Max cut width

1150mm

1450mm

Cutting length

20-1000mm

20-1000mm

Cutting speed

10-150times/min

10-150times/min

Cutting precision

±0.2mm

±0.2mm

Voltage:

AC380V/220V x 50HZ

AC380V/220V x 50HZ

Total power

10KW

15KW

Air source

Max 5.5kg/cm2×5m3/min

Unwinding numbers

can be 1 roll,2roll,4 rolls loading

Power supply

Three phases four lines air switch, 380V / 50Hz (can be made according to users



Performance and Characteristics

  • ►Adopts pneumatic automatic materials loading system with much easy operation and convenience
  • ►Adopts down-up recurrent cutting with orderly finished products and without water                                caltrop; meantime, it can be used for horizontal cutting and vertical cutting at one time
  • ►It adopts servo motor for controlling constant-length cutting.
  • ►It adopts PLC control, contact screen operation
  • ►It adopts pneumatic, displacement sensor for controlling transmission system, with photoelectric,        gas together, it has the function of easy operation, high precision, good stability, low noise.
  • ►This machine has the function of the frequency converter timing device, automatic counting, stop        working by alarm ,magnetic powder tension control, can be vertically, adopt blower fan to get rid of      waste
  • ►It has the functions of high-precision of cutting, high speed,etc . pneumatic structure combined with      computer control be adopted for transmission section ,making it become much more steady                operation
  • ►It has the function of automatic stacking which is in order . Photoelectric auto tracing subtense            system

Main Specification

Unwinding unit :

  • 1)Machine shelf adopts cast quality steel plate
  • 2)Adopts air pressure automatic lifting function
  • 3)Lifting adopts 150 model double cylinder start
  • 4)Magnetic powder tension control system
  • 5)Control type Use potentiometer control
  • 6)Tension control scope: 3-50kg
  • 7)Tension magnetic powder use 10kg controller
  • 8)Material pulling rolls adopts air shaft type
  • 9)Transmission guide roll: aluminum guide roll by active balance treatment
  • 10)Material can be adjustable right and left
  • 11)Control typePneumatic control
  • 12)Error correction motor adopts 130 model sychronization motor drive
  • 13)Photo electric for error-correction (precision+-0.2mm) Sensor made in Taiwan
  1. EPC System

    Edge position correction system

  2.

    Traction device:

  • 1)Structure style: active traction and passive press fasten style
  • 2)Based seat is casting structure
  • 3)Traction roller is rubber roller
  • 4)Press fasten style: controlled by pneumatic
  • 5)Press fasten cylinder
  • 6)Transmission guide roller: aluminum guide roller
  • 7)Traction motor adopts servo motor,Drive in-phase fix the length
  • 8)Length can be adjustable by PLC



Material delivery structure:

  • 1)Adopt motor and shift gears combination ways
  • 2)Main motor: speed adjusted by transducer
  • 3)Transducer: VT Brand
  • 4)Drive style: drove by main motor and traction through active roller
  • 5)Transmission: adopts triangle belt and belt wheel together structure
  • 6)Material-delivery: adopts floating backrest structure for buffer action to keep material
  • 7)Floating upper and lower tension adopts pneumatic traction Cylinder
  • 8)Floating guide roller: adopts aluminum guide roller
  • 9)Whole material-delivery structure will be controlled by displacement sensor



Blowing waste paper device:





Cutting Unit:

  • 1)Cutting style: fix well the lower cutter and cut actively by upper cutter
  • 2)Cutter holder: adopts casting heavy style structure
  • 3)Slip bearing
  • 4)Fount
  • 5)Lubricating oil can be recycled using
  • 6)Both upper and lower cutters adopts bar style imported balance silic steel cutter
  • 7)Cutting blade
  • 8)Cutter position can be adjustable by hand
  • 9)Active transmission style: main motor transmission equipped with derailleur enable centrifugal 10)wheel joined with connecting pole to run cutter reciprocating
  • 11)Main motor: by transducer speed adjusting
  • 12)Transducer: Edison brand
  • 13)Transmission: adopts gear wheel and chain wheel together structure
  • 14)Centrifugal wheel
  • 15)Connecting pole



Slitting Unit:

  • 1)Slitting way: Bottom blade initiative, drive upper balder to slit.
  • 2)Adopts round cutters
  • 3)Upper cutter shaft adopts steel shaft
  • 4)Upper round cutters is made form shanghai Shenlong group
  • 5)Bottom cutter shaft adopts steel shaft
  • 6)Bottom round cutter adopts shanghai shenlong cutter
  • 7)Slitting precision : ±0.2mm

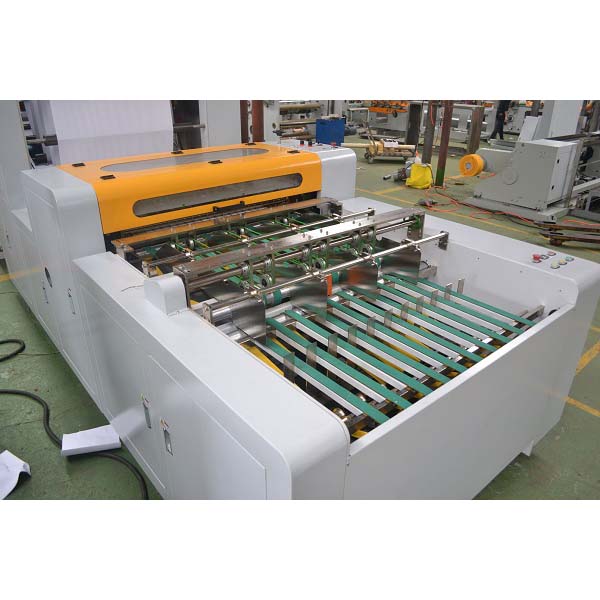

Collection device

  • 1)Automatic meter counting and stop
  • 2)Automatic delivery when reach the numbers setup in PLC
  • 3)Delivery table with belt and divide system



Electrical control part:(connect with main machine):

  • 1)Control system: Main machine control, tension control, adjusting control
  • 2)Main machine controlMain motor control, traction control, material delivery control, cutting control (touch screen is PANASONIC PLC control)
  • 3)Tension control Unwind tension, the speed of control scope is wide, good performance whatever the speed
  • 4)Electrical meter counting, alarm stop, auto length-position functions Above electrical components is Delixi brand in China.

All the switches are made in “Schneider” Germany
