Royal Packing Automatic Paper Roll Slitting Machine

Introduction:

The Paper roller slitting machine is specially used for cutting paper roller, it can used to cut many sizes as your requirement. Speed is high and good result.





More details:

Automatic Paper Roll Slitting Machine

Product: Section smoothly, clean, tidy, no trimming processing!



Introduction:

The Paper roller slitting machine is specially used for cutting paper roller, it can used to cut many sizes as your requirement. Speed is high and good result.



Technological Parameters:

Item

Parameters

Model

RYSD-1500

RYSD-1800

Max. width

2600mm

3000mm

Min. Diameter

400mm

600mm

Max. Diameter

1550mm

1800mm

Time consuming

It’ll take 3-6min to cut one roll paper, time consuming conversely to weight. 6 volumes can be cut per hour in average.

Voltage

380V/50HZ (can be design according to customer)

Total Power

40KW

47kw

Weight

4.5T

4.8T

Dimension

4500*3000*2500mm

7000*3500*2800mm

How to Place

Plat on level ground, willfully adjust allowed

Blade life time

The blade should be sharpened by special tool after 700 times cutting. The blade should be return to factory to be replaced after 6 times polished. We provide the reference price of the blade and the contact of the blade vendor.

Practicality

The machine is made with iron accord with GB. It is durable and will not be deformed. Full welding and secure. It manufactured with the famous brand electronic components which is durable and have stable performance.



Main Spare Parts (RYSD-1500)：

1. Control System

The machine use high performance variable frequency driving system, High quality, easy operation and stable

Item

Qty.

Origin

Note

High-performance overloading inverter

4unit

China

30KW（1unit） 1.5KW（3unit）

Electric frequency control system

1set

High stability



2. Size positioning system

Inverter motor for measure size

1unit

Taiwan

1.1KW

Paper stand

2set

China

Factory made

3.Mechanical system

Reduce gearbox driver

1set

China

High speed, high quality

Reduce gearbox bearing

4set

Japan NSK Tip Bearing



High temperature seal ring

2unit

Japan NOK



Japan NSK P bearing

4set

LK



Machine transmission shaft and mechanical parts are adopt digital controlled lathe processing, good quality and high precision.



4.Cutting system



Shaft roller for Paper

1set

China

Length:2.8m, Dia.:194mm, thick: 25mm，high quality material，good running



Main inverter motor

1unit

30K（imported）

Quality same as ABB motor



Paper Stand Inverter motor

1unit

1.5KW（Taiwan）





Alloy Blade1850*12mm

1psc

Saw body: 80 chromium（Germany）Saw head made in Taiwan

Blade modulation, dynamic balance, heat treatment process. Good stability and durability deformation swing, safety performance



5、Inner vacuum negative pressure fan

2unit

High stability

Reduce 80% dust



6、Dust hood

1unit

China

Factory made

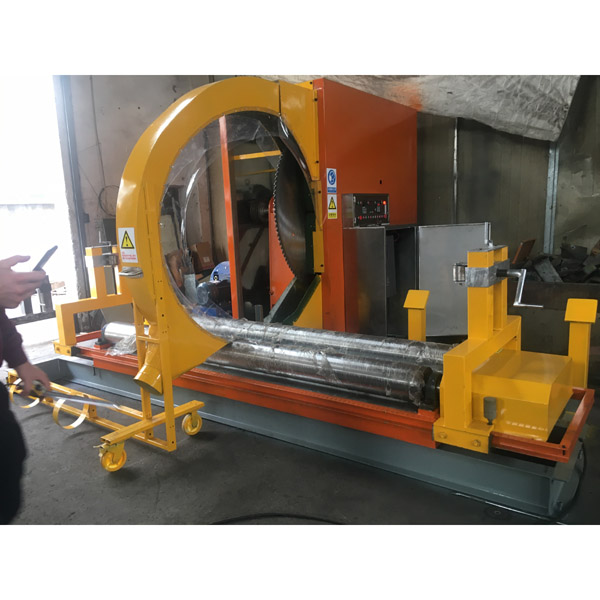

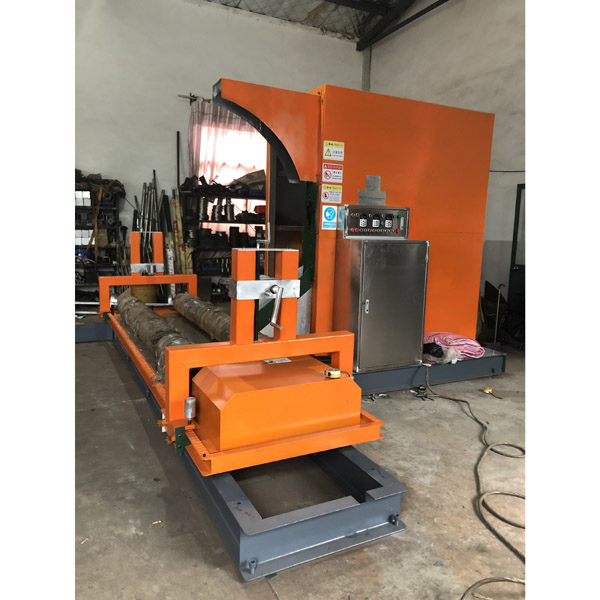

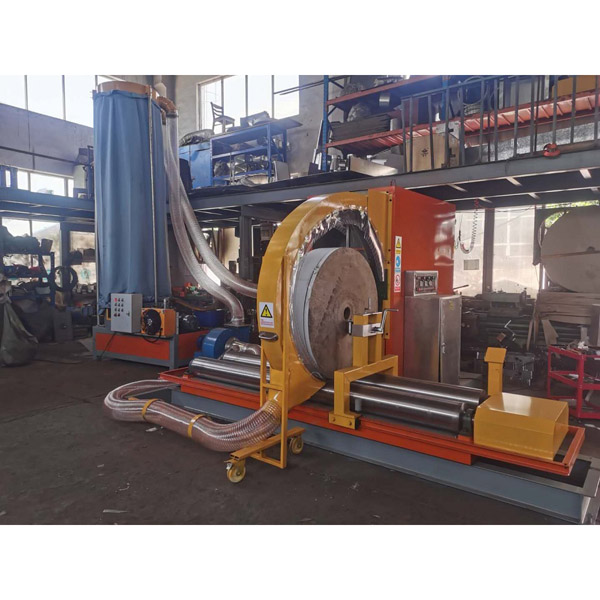

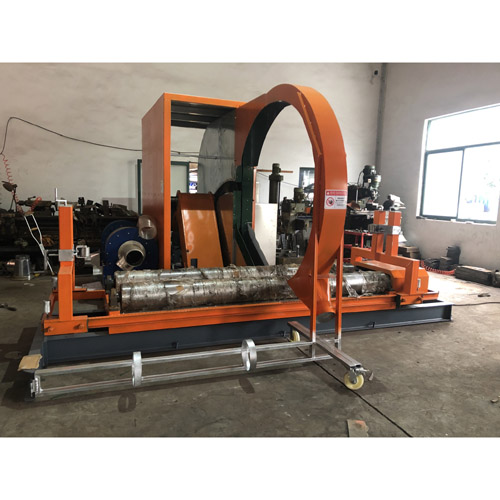

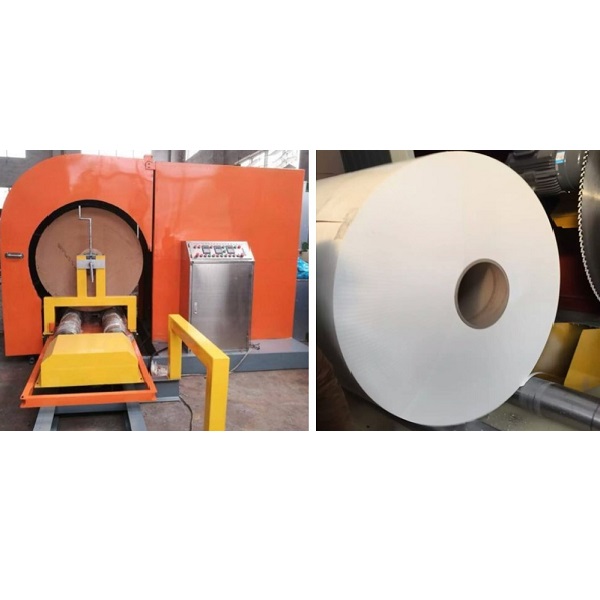

More Photos:
