Royal Packing Fruit Box Making Machine
Introduction:
The machine is mainly used for the production and processing of the lid and base boxes, and is suitable for food packaging, fruits and vegetable packaging.
More Details:

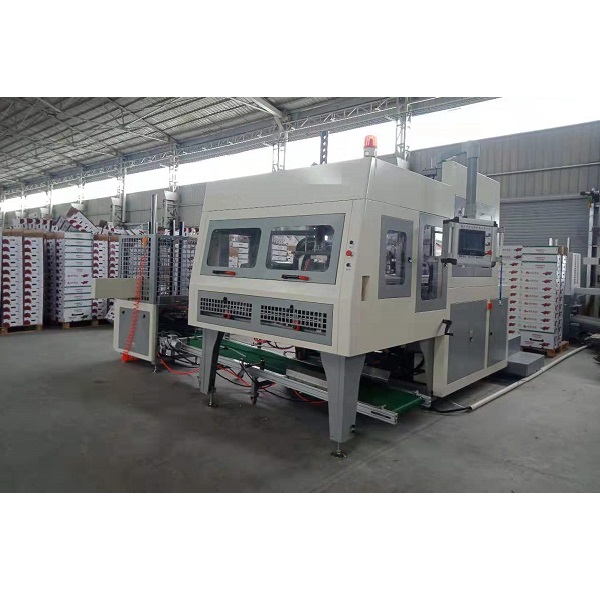

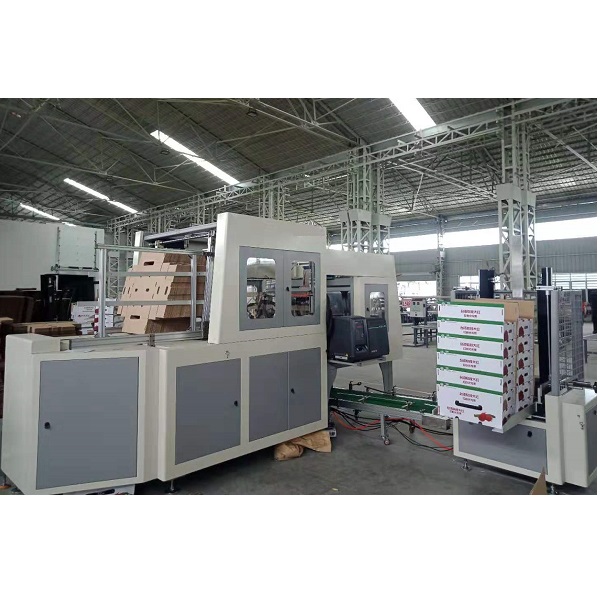

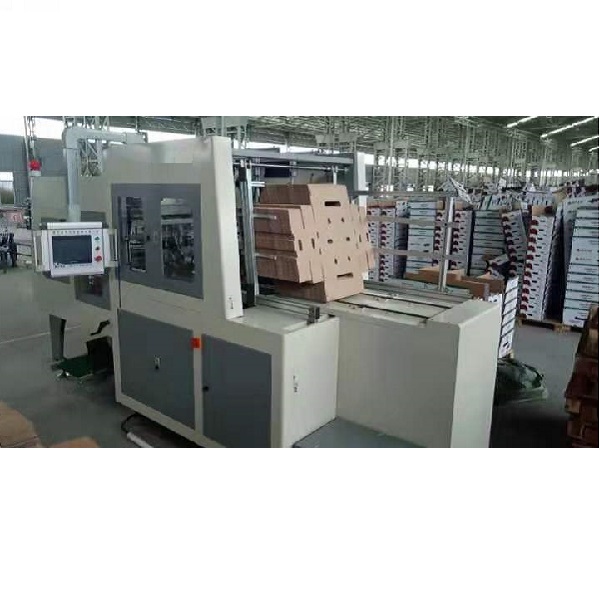

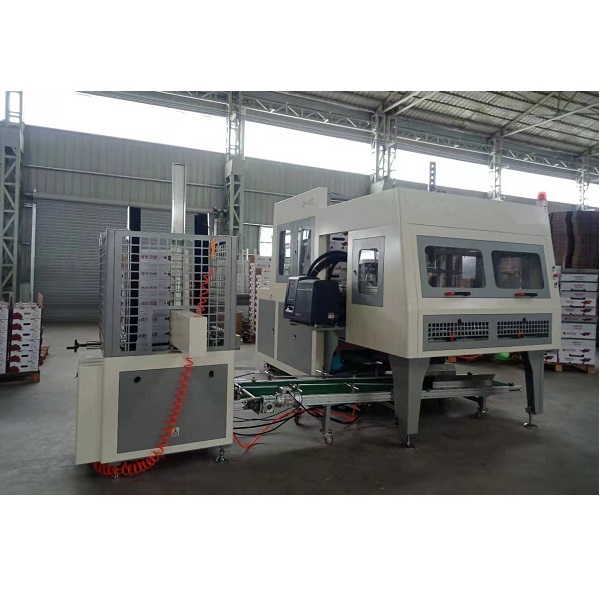

Fruit Box Making Machine
TECHNICAL PARAMETERS:
Thickness of cardboard |
1.5mm-5mm |
Power |
380V / 50Hz |
Noise |
≤ 100dB |
Speed |
1500-1800 (Pieces/hours) |
Cardboard stacking height |
1200mm |
Stacked weight |
100 kg |
Total power |
8kw |
Glue capacity |
10 L |
Air source |
50 L/Minute |
Machine weight |
2000kg |
Dimensions |
4315X2230X2600mm |
PERFORMANCE HIGHLIGHTS:
1. Imported intelligent glue dispensing system with automatic glue compensation;
2. Vacuum suction type automatic paperboard feeding, and the continuous operation of feeding, wrapping, folding and molding is completed in one time;
3. Using PLC programmable controller, photoelectric tracking system, gas source detection and operation system, touch screen man-machine interface, and implementing the whole automation process of the formation of the foldable boxes;
4. Automatically push the cardboard to apply glue front and back, reduce the error of the photoelectric eye to irradiate the cardboard, therefore gluing is more accurate;
5. Infrared safety protection system to ensure the safety of operation personnel;
6. Automatic fault diagnosis function;
7. Automatic quick mold adjustment function;
8. Rack cage design, integral processing, grouped combination;
9. Small footprint and good stability.
PACKAGING BOXES SPECIFICATIONS:
|
||
Package Size |
W: Min. size |
480mm |
W: Max. size |
1000mm |
|
L: Min. Size |
480mm |
|
L: Max. size |
1300mm |
|
Carton size |
L: Min. Size |
220mm |
L: Max. size |
680mm |
|
W: Min. Size |
220mm |
|
W: Max. size |
680mm |
|
H: Min. Size |
30mm |
|
H: Max. size |
250mm |
BOX SAMPLES:
-
