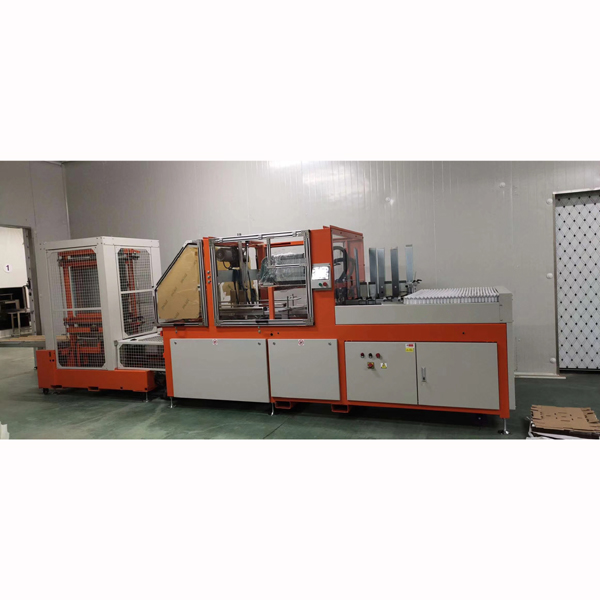

Royal Packing Automatic Fruit Box Making Machine



Introduction:

The machine is welded and painted steel frame; Horizontal loader to help blank positioning, blank picking by vacuum cups controlled by venturi system (one venturi system for each vacuum cup ). Forming head controlled by inverter

Citrus folding system controlled by pneumatic pistons and with possibility of setting both height and width. Glue applicator equipped. Glue system, hot melt gluing user friendly interface with touch screen that helps the operator in reading and performing machine parameters. Available size parameters. Painting frame RAL2004 ;Panels RAL7035. Machine designed and manufactured according to the related CE safety riles 2006/42/CE/(2004/108/CE et 2006/95/CE).



More Details:

Automatic Fruit box making machine

Features:​​

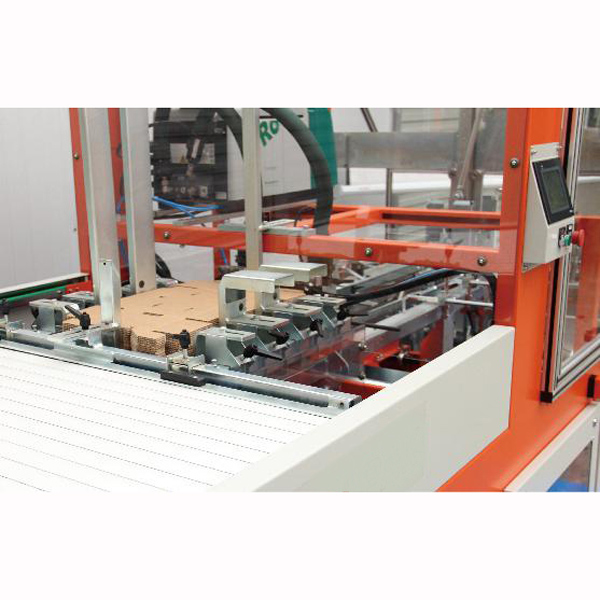

Feeder:

Automatic continue suck feeder to sent sheet into  former section.

horizontal loader to help blank positioning, blank picking by vacuum cups controlled by venture system. (one venture system for each vacuum cup )

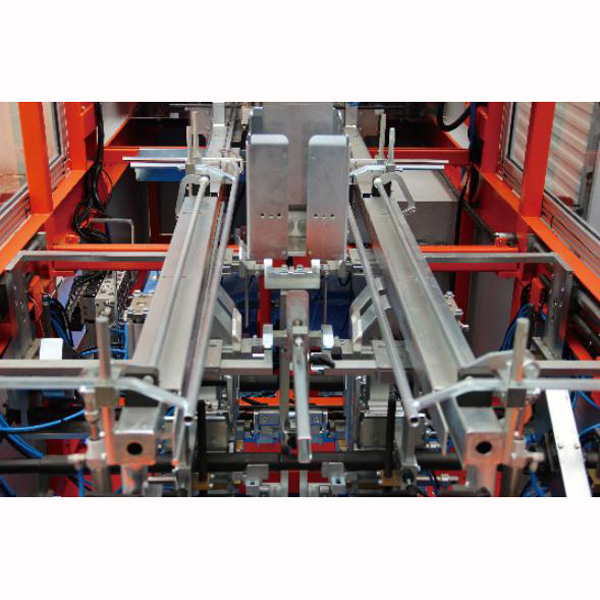

Forming section:

Forming head controlled by inverter.

Citrus folding system controlled by pneumatic pistons and with possibility of setting both height and width.

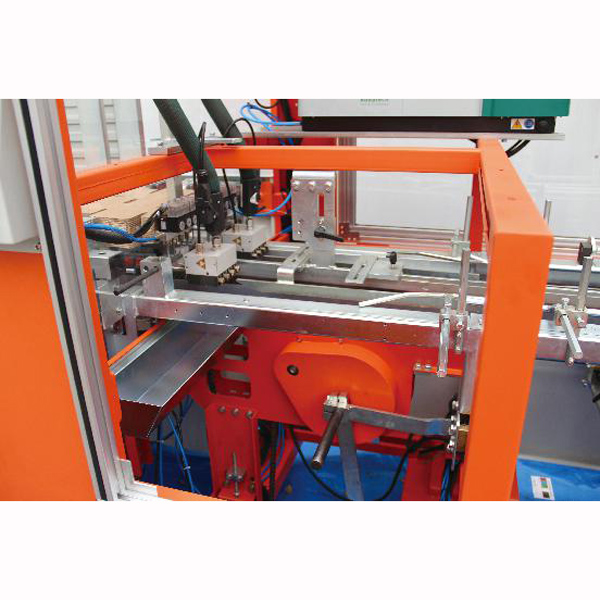

Glue applicator: SMI OEM Standard Gluing machine (ROBATECH or Nordson or Valco Melton，options） equipped by 2 guns.



Pre -folding section:

Forming head controlled by inverter . fast change over by means of hand wheels equipped with direct drive indicators, citrus foling system controlled by pneumatic pistons and with possibility of setting both height and width , glue applicator equipped.



Main Technological Parameters:

Model

RYE7-2M

Driving mode

Mechanical /Electrical and Pneumatic

Max. output （speed)

up to 35 pieces per mintues (2400 Trays/hour）

Working temperature

from 5°C to 35°C

Power

5.65kw

Voltage

380V  50HZ 3 phases + N + G

Weight

1500 KG

Air consumption

6-8 Bar (24L cycle)

Dimension

5770x1570x2080mm

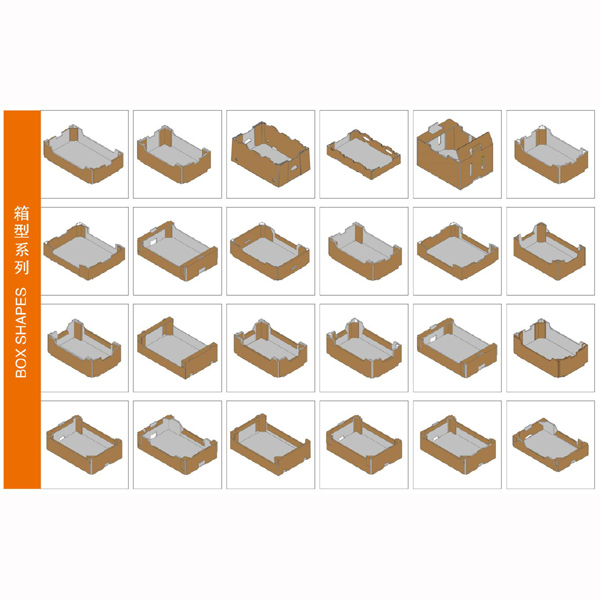

Tray and Blank Size Ranges(mm):

Application Industry:

Fruits & vegetables, food & beverage Industrial products:

Platform:



Options:
