Automatic Fruit Box Making Machine
Introduction:
The machine is welded and painted steel frame; Horizontal loader to help blank positioning, blank picking by vacuum cups controlled by venturi system (one venturi system for each vacuum cup ). Forming head controlled by inverter
Citrus folding system controlled by pneumatic pistons and with possibility of setting both height and width. Glue applicator equipped. Glue system, hot melt gluing. user friendly interface with touch screen that helps the operator in reading and performing machine parameters. Available size parameters. Painting frame RAL2004 ;Panels RAL7035.
More Details:

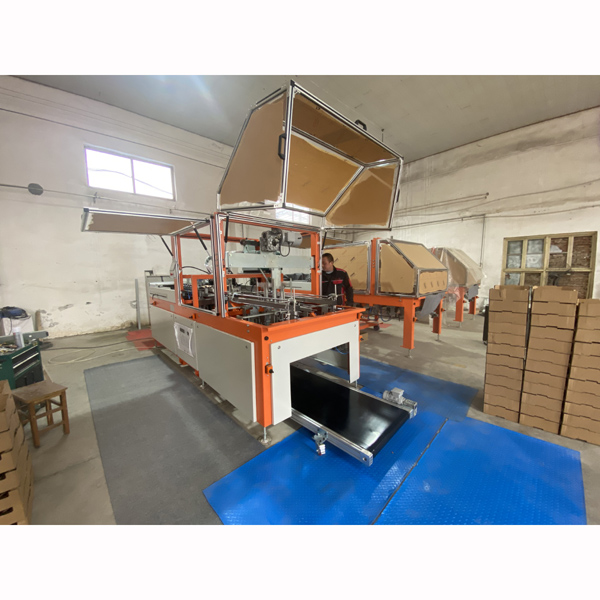

Automatic Fruit Platform Box Making Machine
Main Features:
Efficiency
Take blanks three times each cycle, more higher production.
Easy operation
User friendly interface with touch screen that helps the operator in reading and performing machine parameters.
Economy
International advanced technology design Made in China.
Standard molds kit, short delivery time , maintenance cost lower.
Optimization glue system lower glue cost.
Feeder:
Automatic continue suck feeder to sent sheet into former section .
horizontal loader to help blank positioning, blank picking by vacuum cups controlled by venture system (one venture system for each vacuum cup )
Forming section:

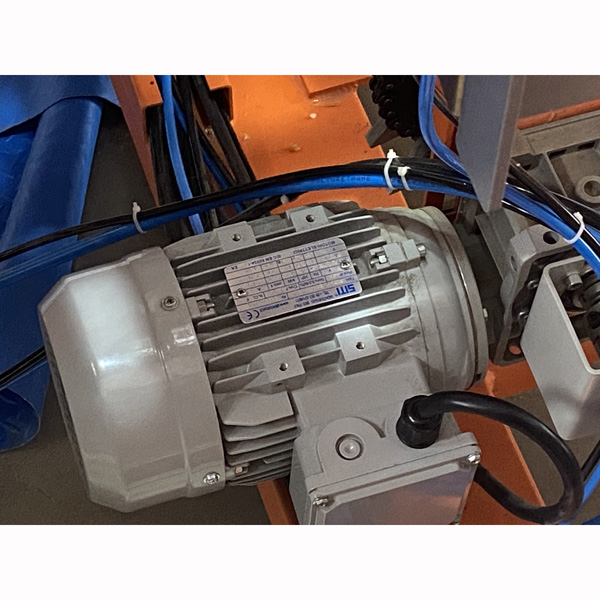

Forming head controlled by inverter
Citrus folding system controlled by pneumatic pistons and with possibility of setting both height and width.

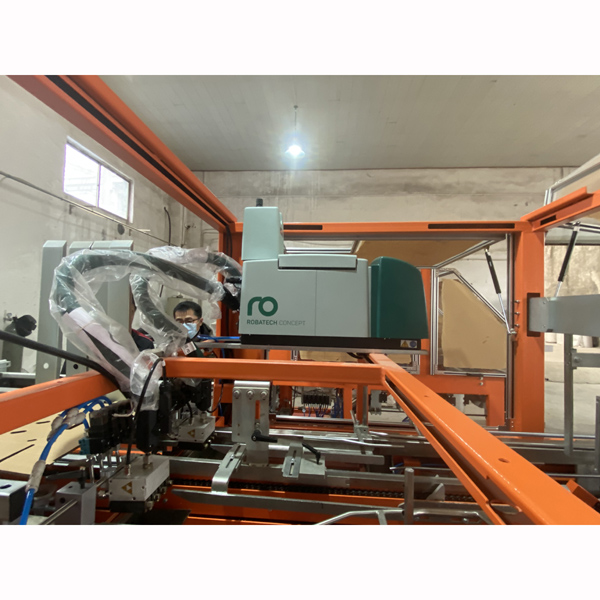

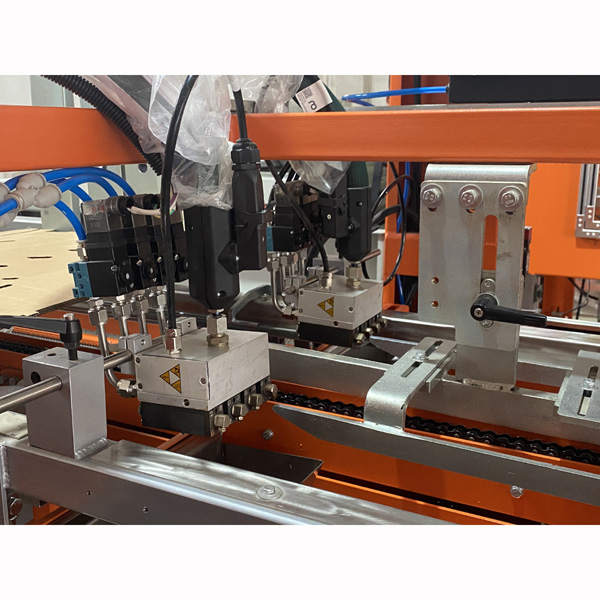

Glue applicator: SMI OEM Standard Gluing machine (ROBATECH or Nordson or Valco Melton,options) equipped by 2 guns.
Pre -folding section
forming head controlled by inverter . fast change over by means of hand wheels equipped with direct drive indicators,
citrus foling system controlled by pneumatic pistons and with possibility of setting both height and width , glue applicator equipped.
Product Flow:
Main Technological Parameters:
Model |
RYE7-3Ms/3M |
Driving mode |
Mechanical /Electrical and Pneumatic |
Box type |
PLAFORM, P84, CITRUS, OPEN CLOUMNS&C-1 |
Max. speed |
1800/1800-2400 boxes/hour, can adjust speed |
Power |
6.2kw |
Voltage |
380V 50HZ 3 phases + N + G |
Weight |
1280 KG |
Air consumption |
6-8 Bar (19L cycle) |
Dimension |
3880x1470x2080mm |
Glue system |
Nordson / Robatech / MELER |
Tray and Blank Size Ranges(mm):
Application Industry:
Fruits & vegetables, food & beverage Industrial products:
