Single Pass Digital Printer



Introduction:

RYPE-X Digital press is mainly used for Packaging and printing industry, Suitable for Flute A,B,C,E corrugated paperboard, honeycomb paperboard, thin wood, etc. No need printing plate, mainly used for small batches production.

More Details:

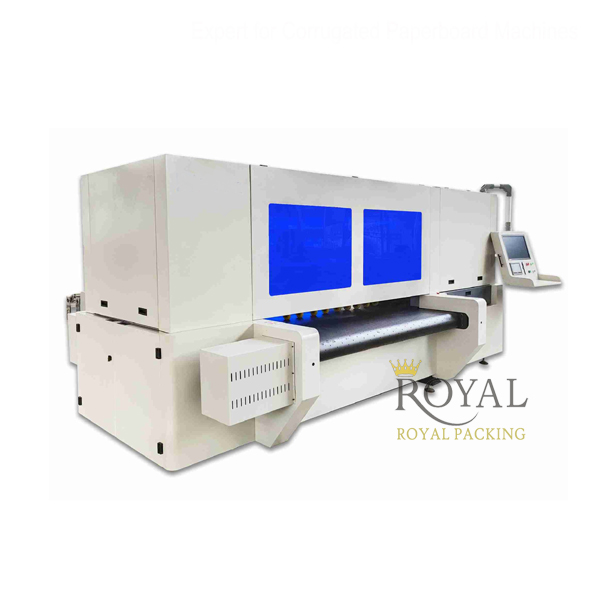

RYPE-A-G SINGLE PASS DIGITAL PRINTER with INDUSTRIAL GRADE

Introduction:

RYPE-A-G Digital press is mainly used for Packaging and printing industry, Suitable for Flute A,B,C,E corrugated paperboard, honeycomb paperboard, thin wood, etc. No need printing plate, mainly used for small batches production.

Feature Description

  1. ► Printing on demand, no need to clean the machine, no noise, comprehensively improve working           environment of employees, and completely solve the environment problems of enterprises.
  2. ► Orders of the same size, and different patterns can be exchanged seamlessly, quickly and easily.         The data system can be changed and one size can be achieved.
  3. ► Automatic sprinkler maintenance: software features automatic flash spray nozzle maintenance             functions to ensure the smooth ray holes.
  4. ► Reliable PCI communication: the use of high speed PCI interface and stable industrial grade all-         optical data communication mode.
  5. ► Smart sort order: customer is free to set the order of continuous production of different orders and       sequential automatic production, the operator does not need another half way single row, to                 achieve three seconds fast for a single, time-saving more.
  6. ► Equipment complies with CE standards and industry requirements hommization.

Technical Parameter

Type.

RYPE-18A1-G

RYPE-12A1-G

Material format

1800mm

1200mm

Printing format

                                               (Printhead quantity X 54 mm) X 2400 mm

Board Thickness

 Between 1mm~30mm

Feeding Mode

Lead-edge feeder, vacuum suction, conveyor belt;

Print Head Quantity

816                                                          can be customized

612                                                        can be customized

Print Head Model

Ricoh GEN5Micro piezoelectric high precision print head

Ink Type

Water-based dye ink

Ink Color

CMYKAny one color

Drying speed

Liner-board can be dry once print out

Printing efficiency

600*200DPI,max 130m/min

600*300DPI,max 90m/min

600*600DPImax 50m/min

Thermostat System

Thermostat system with patent

Printing Resolution

≥600*200DPI

Operate System

Professional RIP/ printing system, win10 system

Ink Supply

Automatic two levels supply, Fully enclosed ink supply channel efficiency.

Graphics Format Support

JPGBMPTIF, PDF

Print Head Cleaning System

Automatic Negative pressure suction.

Operating Environment

15-30 indoor, temperature , Humidity 20-70%

Warranty

6 months for the print head, 1 year for the machine.

Power Supply

18.0 KW, AC380±10%50~60HZ

Machine Size

L×W×H 4000×4390×2000mm

L×W×H 3400×3050×1800mm

Weight

5000 KG

2500 KG



Type.

RYPE-18A2-G

RYPE-12A2-G

Material format

1800mm

1200mm

Printing format

 (Printhead quantity X 54 mm) X 2400 mm

Board Thickness

 Between 1mm~30mm

Feeding Mode

Lead-edge feeder, vacuum suction, conveyor belt;

Print Head Quantity

1632                                                            can be customized

1632                                                          can be customized

Print Head Model

Ricoh GEN5Micro piezoelectric high precision print head

Ink Type

Water-based dye ink

Ink Color

CMYKAny two color

Drying speed

Liner-board can be dry once print out

Printing efficiency

600*200DPI,max 130m/min

600*300DPI,max 90m/min

600*600DPImax 50m/min

Thermostat System

Thermostat system with patent

Printing Resolution

≥600*200DPI

Operate System

Professional RIP/ printing system, win10 system

Ink Supply

Automatic two levels supply, Fully enclosed ink supply channel efficiency.

Graphics Format Support

JPGBMPTIF, PDF

Print Head Cleaning System

Automatic Negative pressure suction.

Operating Environment

15-30 indoor, temperature , Humidity 20-70%

Warranty

6 months for the print head, 1 year for the machine.

Power Supply

18.0 KW, AC380±10%50~60HZ

Machine Size

L×W×H 4000×4390×2000mm

L×W×H 3400×3050×1800mm

Weight

5000 KG

2500 KG



Type.

RYPE-18A4-G

RYPE-12A4-G

Material format

1800mm

1200mm

Printing format

 (Printhead quantity X 54 mm) X 2400 mm

Board Thickness

 Between 1mm~30mm

Feeding Mode

Lead-edge feeder, vacuum suction, conveyor belt;

Print Head Quantity

3264                                                            can be customized

2448                                                          can be customized

Print Head Model

Ricoh GEN5Micro piezoelectric high precision print head

Ink Type

Water-based dye ink

Ink Color

CMYK

Drying speed

Liner-board can be dry once print out

Printing efficiency

600*200DPI,max 130m/min

600*300DPI,max 90m/min

600*600DPImax 50m/min

Thermostat System

Thermostat system with patent

Printing Resolution

≥600*200DPI

Operate System

Professional RIP/ printing system, win10 system

Ink Supply

Automatic two levels supply, Fully enclosed ink supply channel efficiency.

Graphics Format Support

JPGBMPTIF, PDF

Print Head Cleaning System

Automatic Negative pressure suction.

Operating Environment

15-30 indoor, temperature , Humidity 20-70%

Warranty

6 months for the print head, 1 year for the machine.

Power Supply

18.0 KW, AC380±10%50~60HZ

Machine Size

L×W×H 4000×4390×2000mm

L×W×H 3400×3050×1800mm

Weight

6000 KG

3000 KG



Type.

RYPE-18A4-E

RYPE-12A4-E

Material format

1800mm

1200mm

Print Head Quantity

2436                                                          can be customized

Printing format

 (Printhead quantity X 33 mm) X 2400 mm

Board Thickness

 Between 1mm~30mm

Feeding Mode

Lead-edge feeder, vacuum suction, conveyor belt;

Print Head Model

EPSON i3200

Ink Type

Water-based dye ink

Ink Color

CMYK

Drying speed

Liner-board can be dry once print out

Printing efficiency

Max 50 m/min

Thermostat System

Thermostat system with patent

Printing Resolution

≥360*600 DPI

Operate System

Professional RIP/ printing system, win10 system

Ink Supply

Automatic two levels supply, Fully enclosed ink supply channel efficiency.

Graphics Format Support

JPGBMPTIF, PDF

Print Head Cleaning System

Automatic Negative pressure suction.

Operating Environment

15-30 indoor, temperature , Humidity 20-70%

Warranty

12 months for the print head, 1 year for the machine.

Power Supply

15.0 KW, AC380±10%50~60HZ

Machine Size

L×W×H 4000×4390×2000mm

L×W×H 3400×3050×1800mm

Weight

5000 KG

2500 KG
