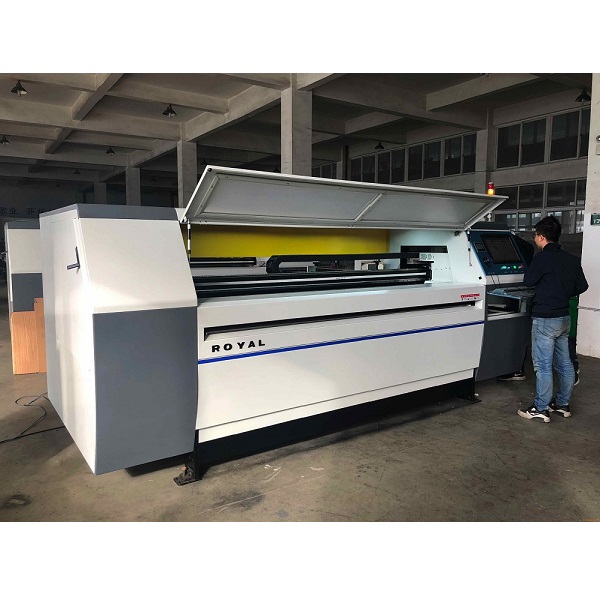

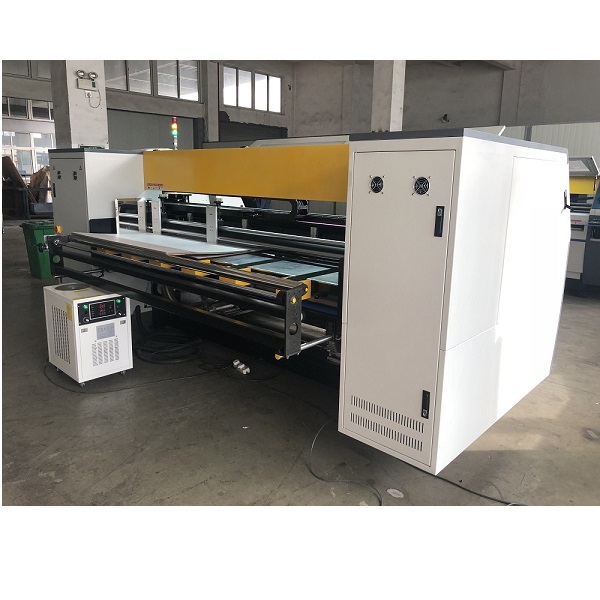

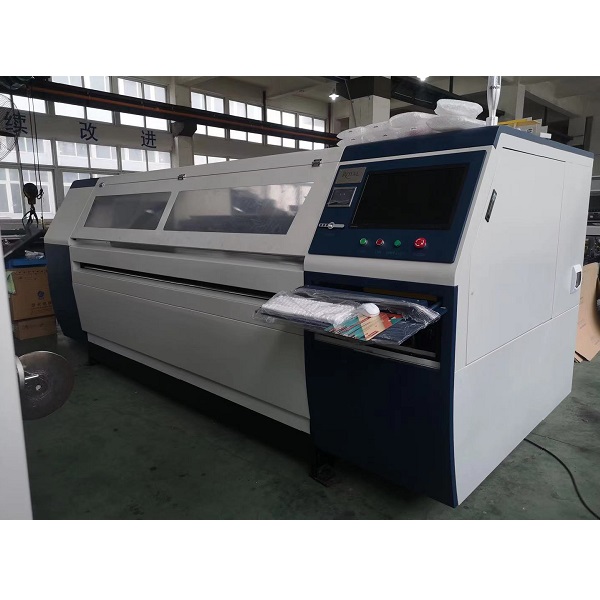

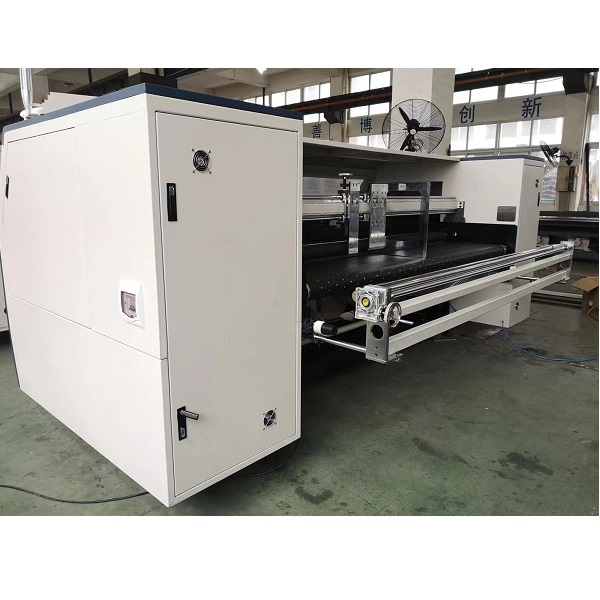

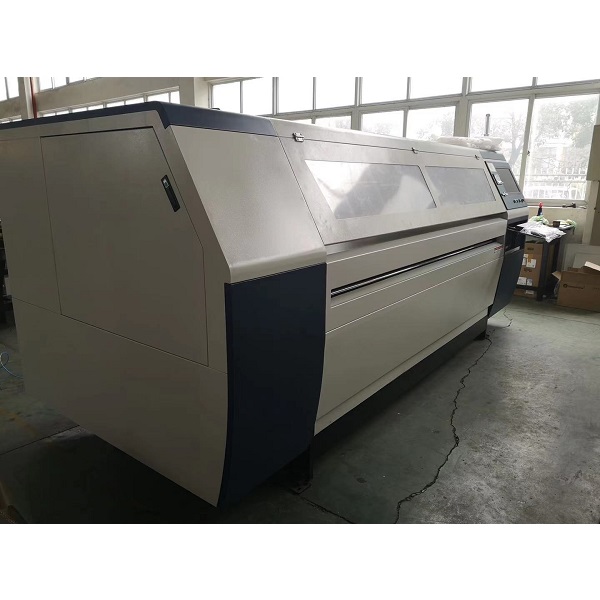

Royal Packing Digital Press for Corrugated Paperboard

Introduction:

RYEP-X-2534 Digital press is mainly used for Packaging and printing industry, Suitable for Flute A,B,C,E corrugated paperboard, honeycomb paperboard, thin wood, etc. No need printing plate, mainly used for small batches production.

More Details:

Digital Press for Corrugated paperboard

Introduction:

RYEP-X-2534 Digital press is mainly used for Packaging and printing industry, Suitable for Flute A,B,C,E corrugated paperboard, honeycomb paperboard, thin wood, etc. No need printing plate, mainly used for small batches production.

Characteristics:

（1）Fast Printing: The new design with 4 or 8 printing heads realized the continuous production by   1Pass, the speed is high.

（2）Automatic feeding: Optimization of control action program, continuous delivery of paper without  waiting, printing process is smooth and fast.

（3）No Printing plate: With computer drawings, 0 cost for plate.

（4）No plate adjust: Control fast change by computer program, no print paperboard waste.

（5）No color adjust: Professional software processing, four color automatic color stack printing.

（6）No need clean work: Full closed automatic ink supply system and zero discharge of              wastewater in the process of spray printing.

（7）Controllable ink dot: use automatic control system to control jet ink , to achieve gradient color   more realistic.

（8）Energy saving and consumption reduction: low cost, low energy consumption, no noise             production. The cost is about USD0.005 per square meter, the cost of full plate color printing             ink is about USD0.05 per square meter, and the power consumption of the whole machine is             not  more than 3 kilowatts.

（9）Simple operation: Computer program control, automatic height measurement, paper delivery,    low manpower cost.

（10）Bit working area: flat sheet feed, spray printing, maximum paper for 2500mmX5000mm or        longer.

（11）Min. order is one piece print: the start and print, the real solution to the sample, the                 supplement, the emergency list and the small volume carton orders.

（12）Fast change: a lot of orders can be choreographed at a time to achieve zero time change.

（13）Network control: convenient enterprise to production statistics and supervision and                   manufacturer remote technical support.

Main Technological Parameters:

Main Configuration List:

Main Parts:

 Ricoh-G5 Industrial grade print head

Control system

Ink-provide system

Print head cleaning system                                  Water ink

Automatic feeding system

Profession printing software

Water ink supply system                         Control system

Automatic pressing system

 Option: rack of feeding part: 2.5x3.5m/ Conveyor of output part

More printing samples:
